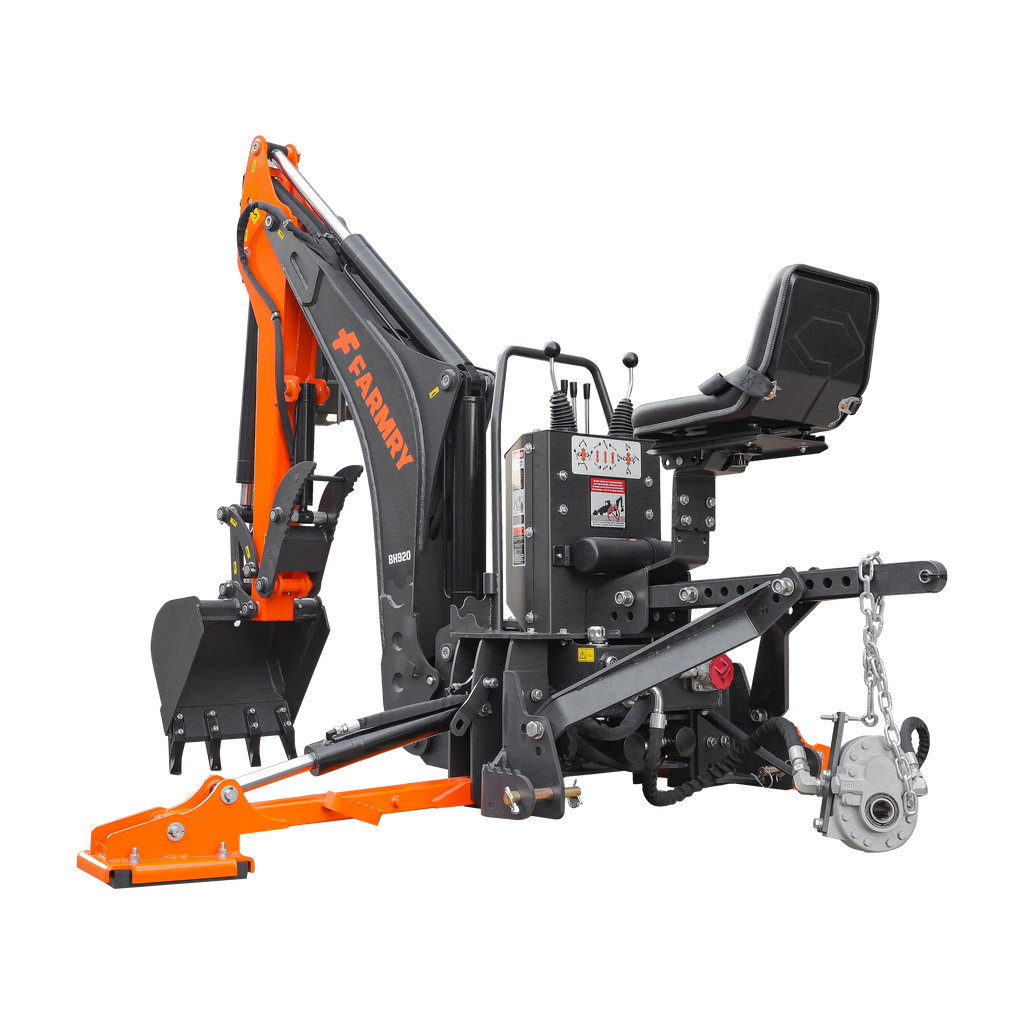

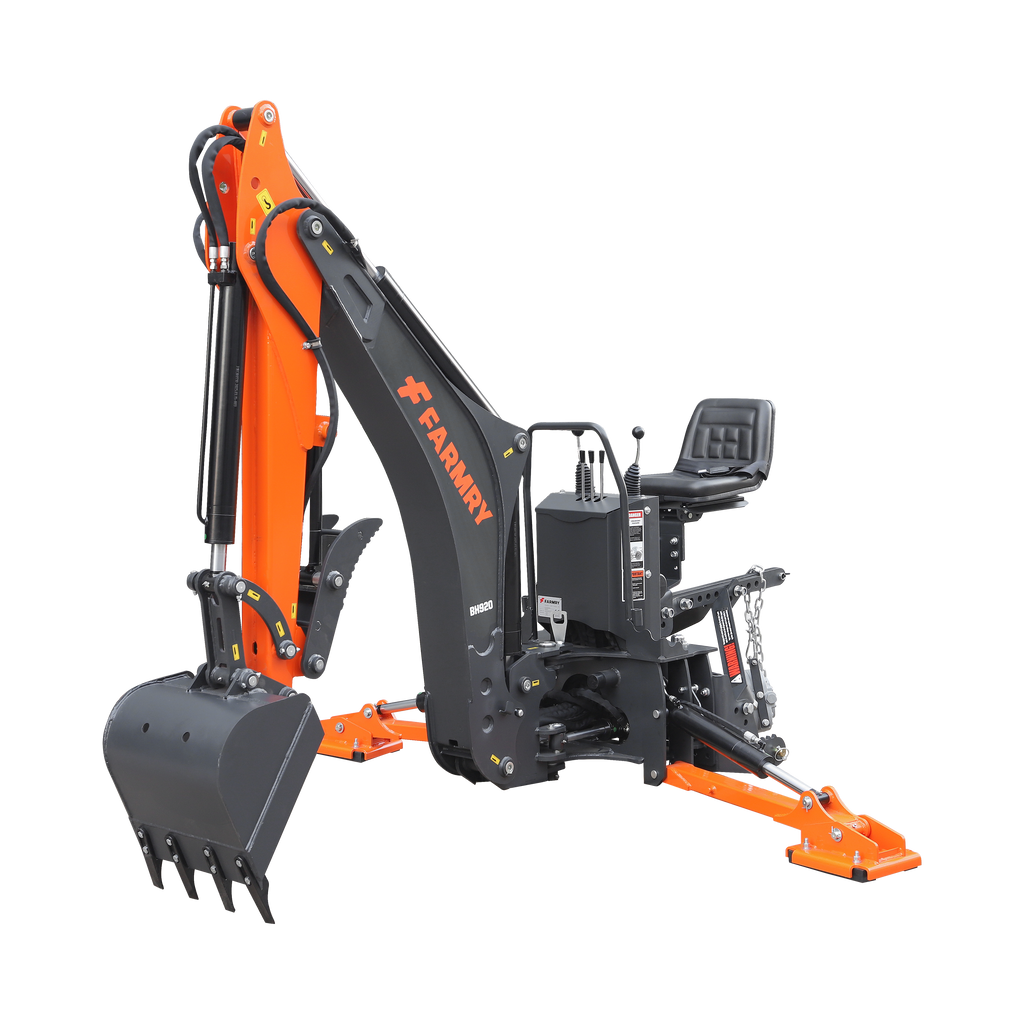

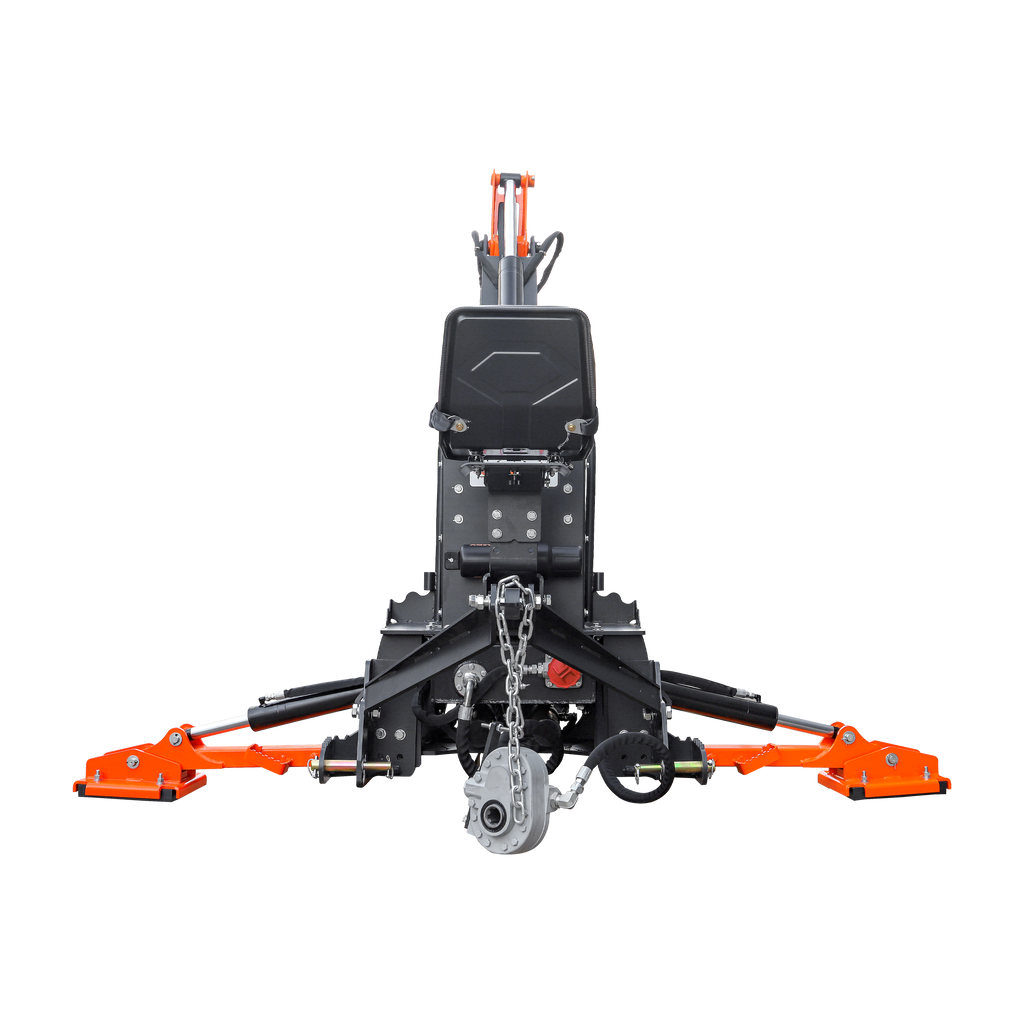

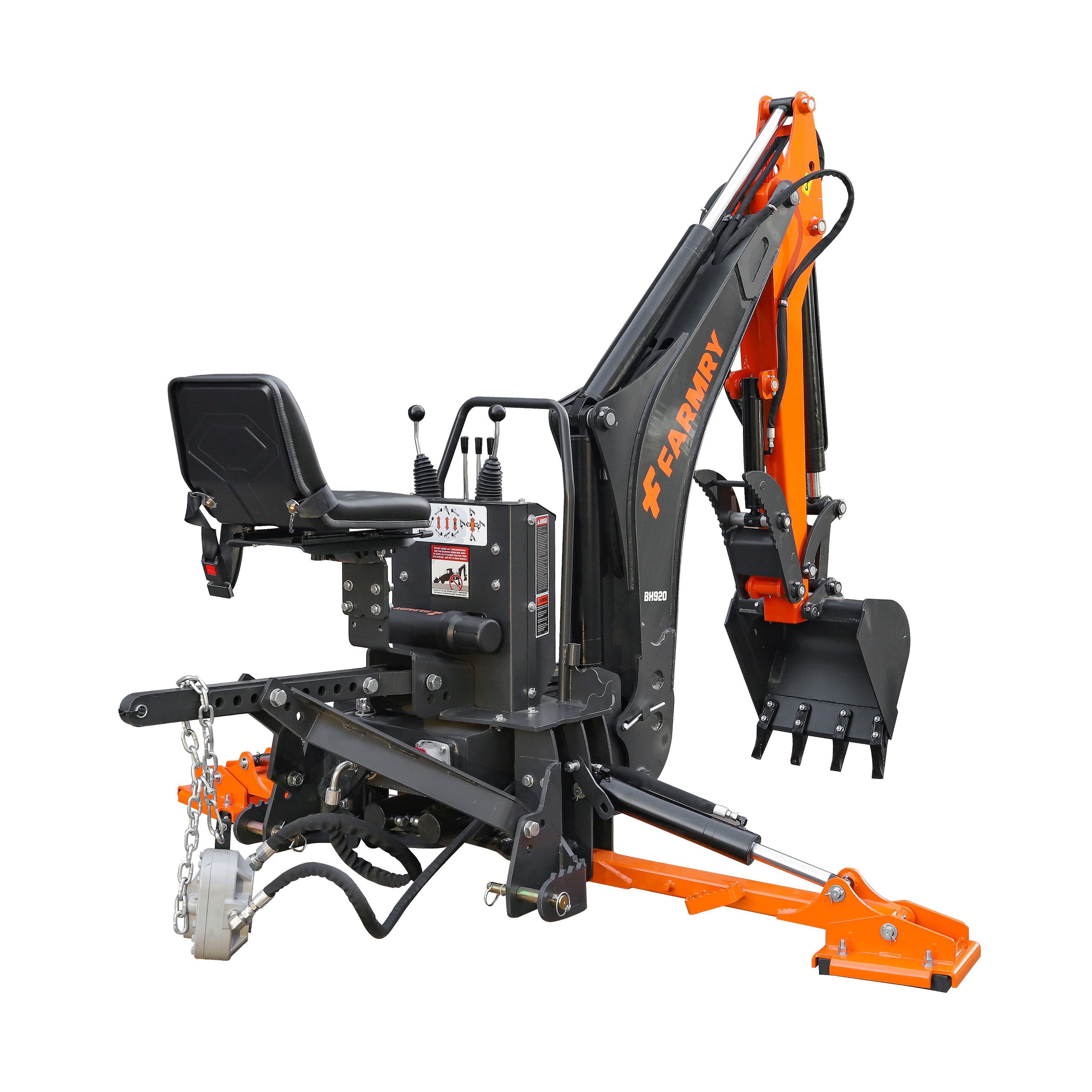

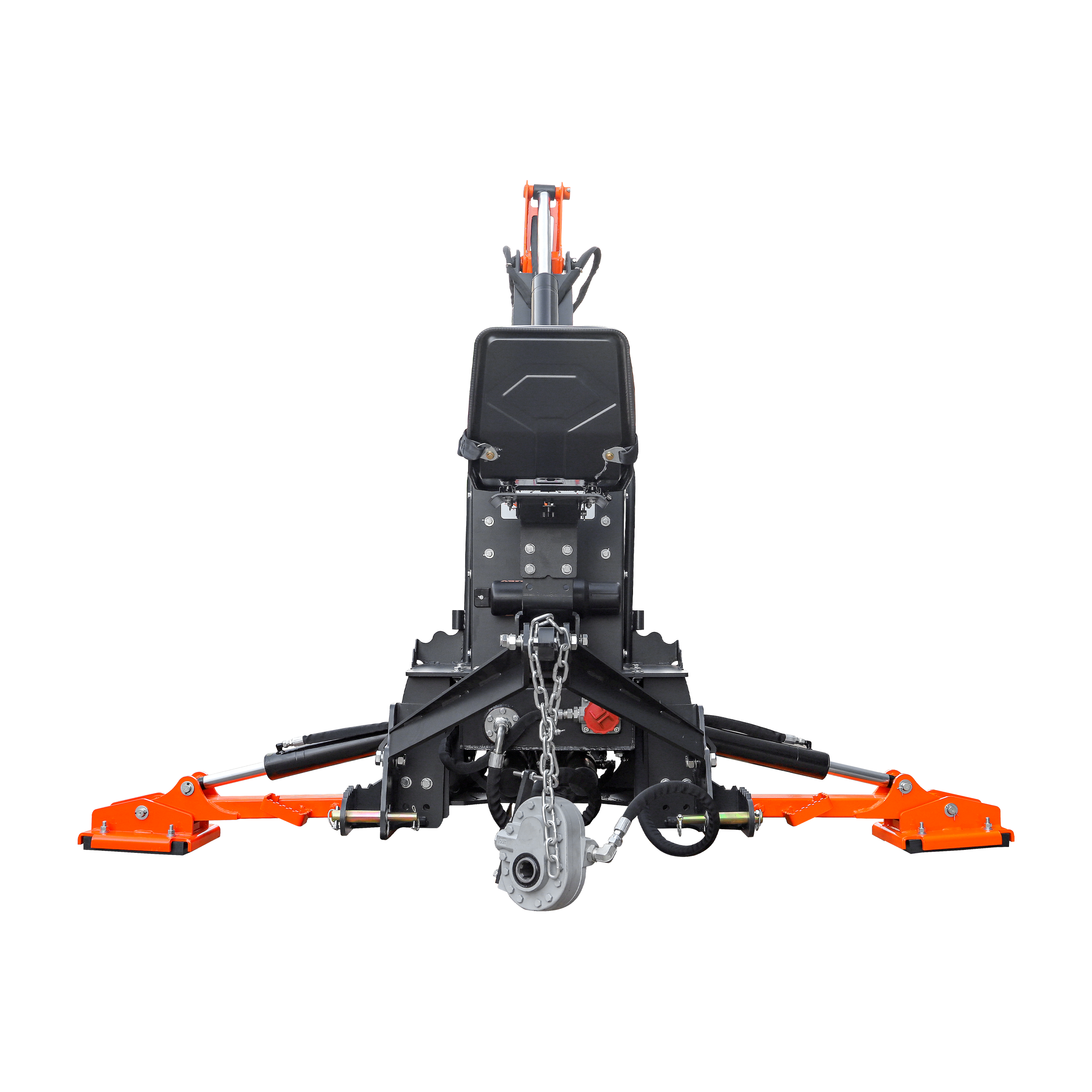

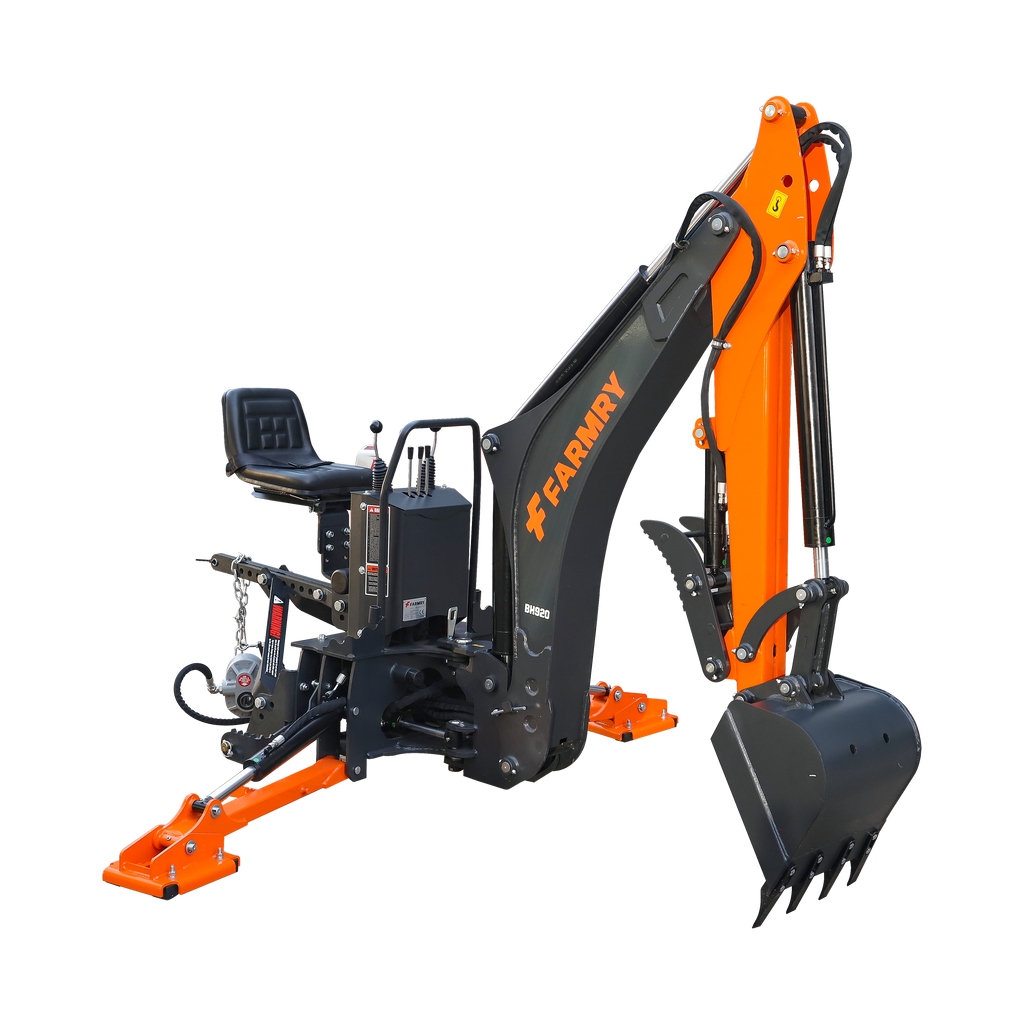

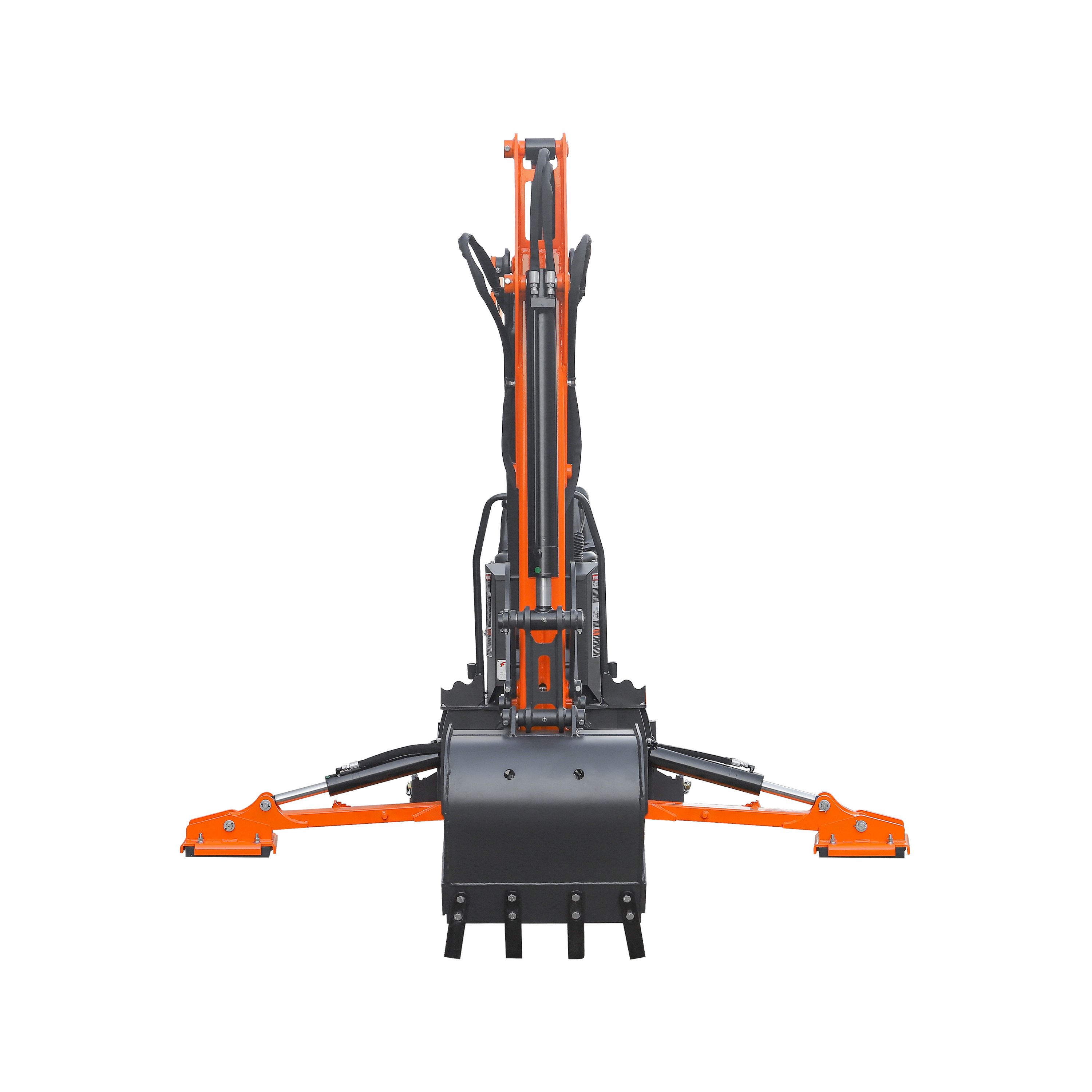

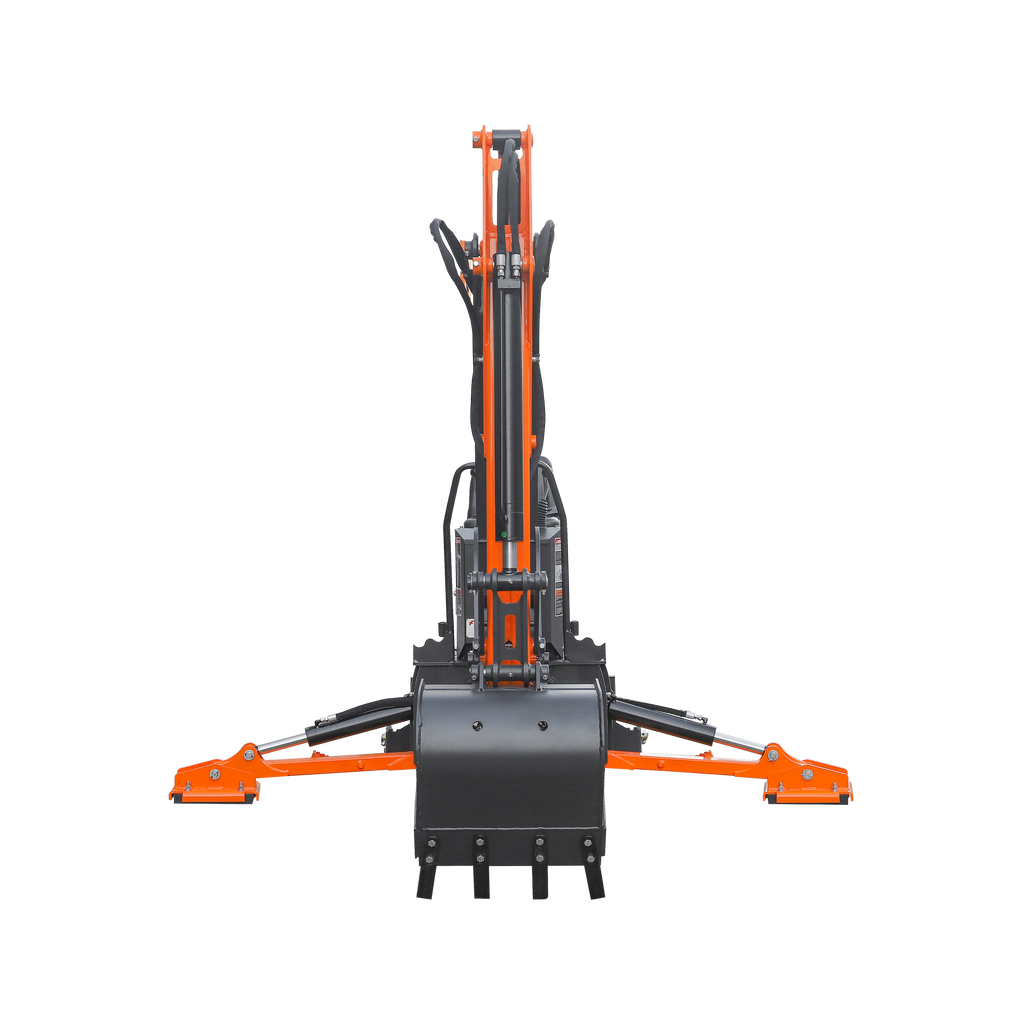

9'2" Tractor Backhoe with Curved Boom, 18" Bucket, Hydraulic Grapple Thumb, Self-Contained Gear Pump&Hydraulic Reservoir included, for 45-120 HP, Cat 2 Hookup, BH920

9'2" Tractor Backhoe with Curved Boom, 18" Bucket, Hydraulic Grapple Thumb, Self-Contained Gear Pump&Hydraulic Reservoir included, for 45-120 HP, Cat 2 Hookup, BH920

$4,129.30 $7,099.00
Skip to product information
9'2" Tractor Backhoe with Curved Boom, 18" Bucket, Hydraulic Grapple Thumb, Self-Contained Gear Pump&Hydraulic Reservoir included, for 45-120 HP, Cat 2 Hookup, BH920
  • 9'2" Tractor Backhoe with Curved Boom, 18" Bucket, Hydraulic Grapple Thumb, Self-Contained Gear Pump&Hydraulic Reservoir included, for 45-120 HP, Cat 2 Hookup, BH920
  • 9'2" Tractor Backhoe with Curved Boom, 18" Bucket, Hydraulic Grapple Thumb, Self-Contained Gear Pump&Hydraulic Reservoir included, for 45-120 HP, Cat 2 Hookup, BH920
  • 9'2" Tractor Backhoe with Curved Boom, 18" Bucket, Hydraulic Grapple Thumb, Self-Contained Gear Pump&Hydraulic Reservoir included, for 45-120 HP, Cat 2 Hookup, BH920
  • 9'2" Tractor Backhoe with Curved Boom, 18" Bucket, Hydraulic Grapple Thumb, Self-Contained Gear Pump&Hydraulic Reservoir included, for 45-120 HP, Cat 2 Hookup, BH920
  • 9'2" Tractor Backhoe with Curved Boom, 18" Bucket, Hydraulic Grapple Thumb, Self-Contained Gear Pump&Hydraulic Reservoir included, for 45-120 HP, Cat 2 Hookup, BH920
  • 9'2" Tractor Backhoe with Curved Boom, 18" Bucket, Hydraulic Grapple Thumb, Self-Contained Gear Pump&Hydraulic Reservoir included, for 45-120 HP, Cat 2 Hookup, BH920
  • 9'2" Tractor Backhoe with Curved Boom, 18" Bucket, Hydraulic Grapple Thumb, Self-Contained Gear Pump&Hydraulic Reservoir included, for 45-120 HP, Cat 2 Hookup, BH920
  • 9'2" Tractor Backhoe with Curved Boom, 18" Bucket, Hydraulic Grapple Thumb, Self-Contained Gear Pump&Hydraulic Reservoir included, for 45-120 HP, Cat 2 Hookup, BH920
  • 9'2" Tractor Backhoe with Curved Boom, 18" Bucket, Hydraulic Grapple Thumb, Self-Contained Gear Pump&Hydraulic Reservoir included, for 45-120 HP, Cat 2 Hookup, BH920
  • 9'2" Tractor Backhoe with Curved Boom, 18" Bucket, Hydraulic Grapple Thumb, Self-Contained Gear Pump&Hydraulic Reservoir included, for 45-120 HP, Cat 2 Hookup, BH920
  • 9'2" Tractor Backhoe with Curved Boom, 18" Bucket, Hydraulic Grapple Thumb, Self-Contained Gear Pump&Hydraulic Reservoir included, for 45-120 HP, Cat 2 Hookup, BH920
  • 9'2" Tractor Backhoe with Curved Boom, 18" Bucket, Hydraulic Grapple Thumb, Self-Contained Gear Pump&Hydraulic Reservoir included, for 45-120 HP, Cat 2 Hookup, BH920
  • 9'2" Tractor Backhoe with Curved Boom, 18" Bucket, Hydraulic Grapple Thumb, Self-Contained Gear Pump&Hydraulic Reservoir included, for 45-120 HP, Cat 2 Hookup, BH920
  • 9'2" Tractor Backhoe with Curved Boom, 18" Bucket, Hydraulic Grapple Thumb, Self-Contained Gear Pump&Hydraulic Reservoir included, for 45-120 HP, Cat 2 Hookup, BH920
  • 9'2" Tractor Backhoe with Curved Boom, 18" Bucket, Hydraulic Grapple Thumb, Self-Contained Gear Pump&Hydraulic Reservoir included, for 45-120 HP, Cat 2 Hookup, BH920
  • 9'2" Tractor Backhoe with Curved Boom, 18" Bucket, Hydraulic Grapple Thumb, Self-Contained Gear Pump&Hydraulic Reservoir included, for 45-120 HP, Cat 2 Hookup, BH920

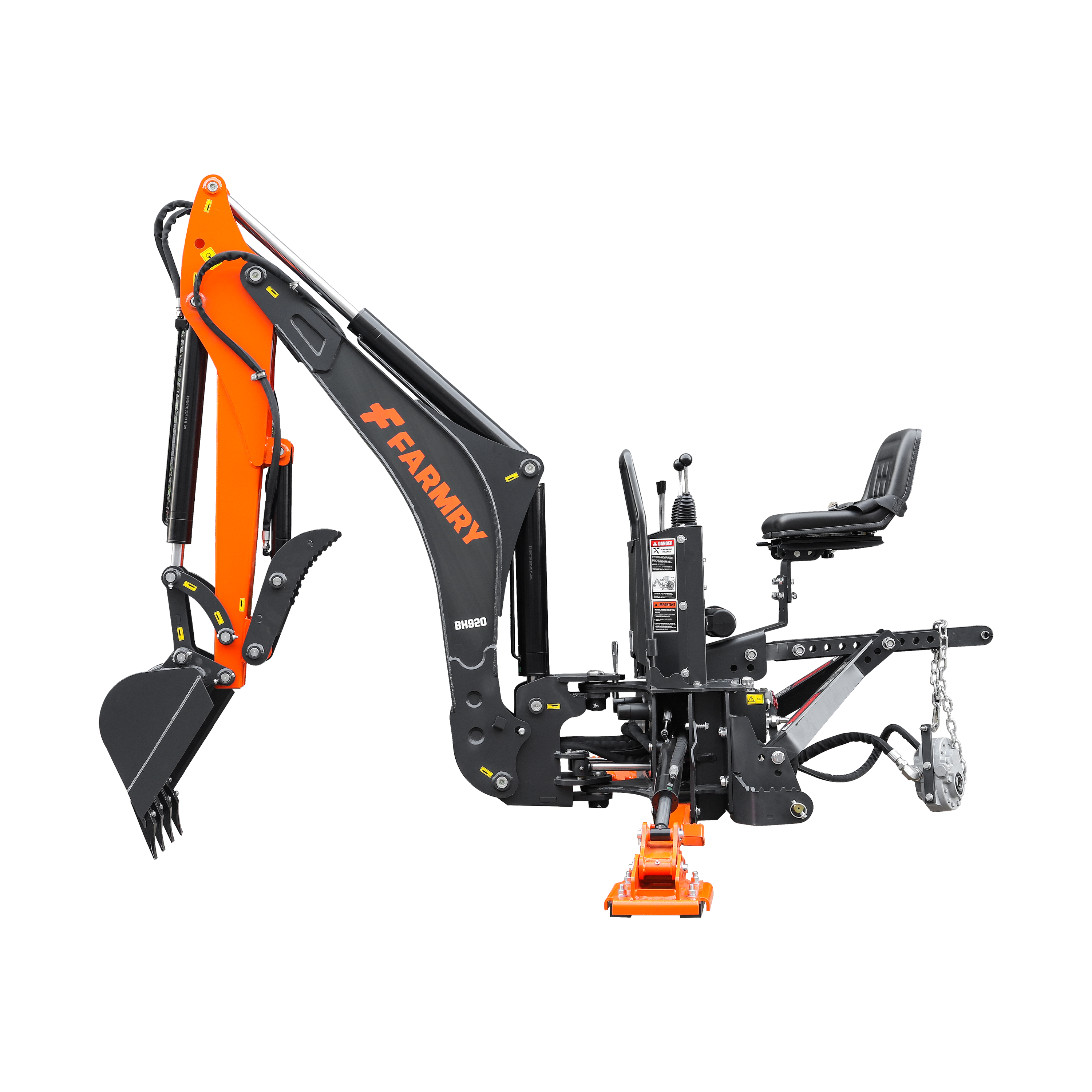

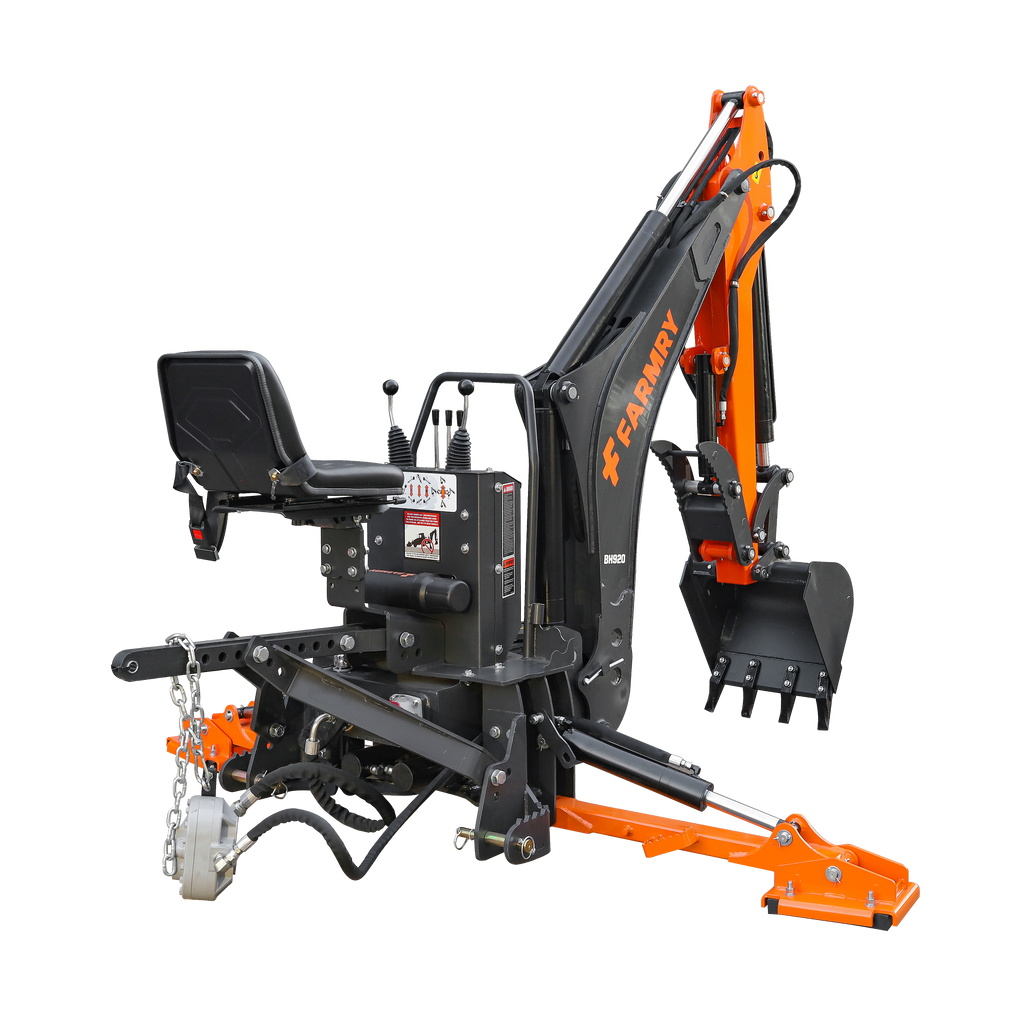

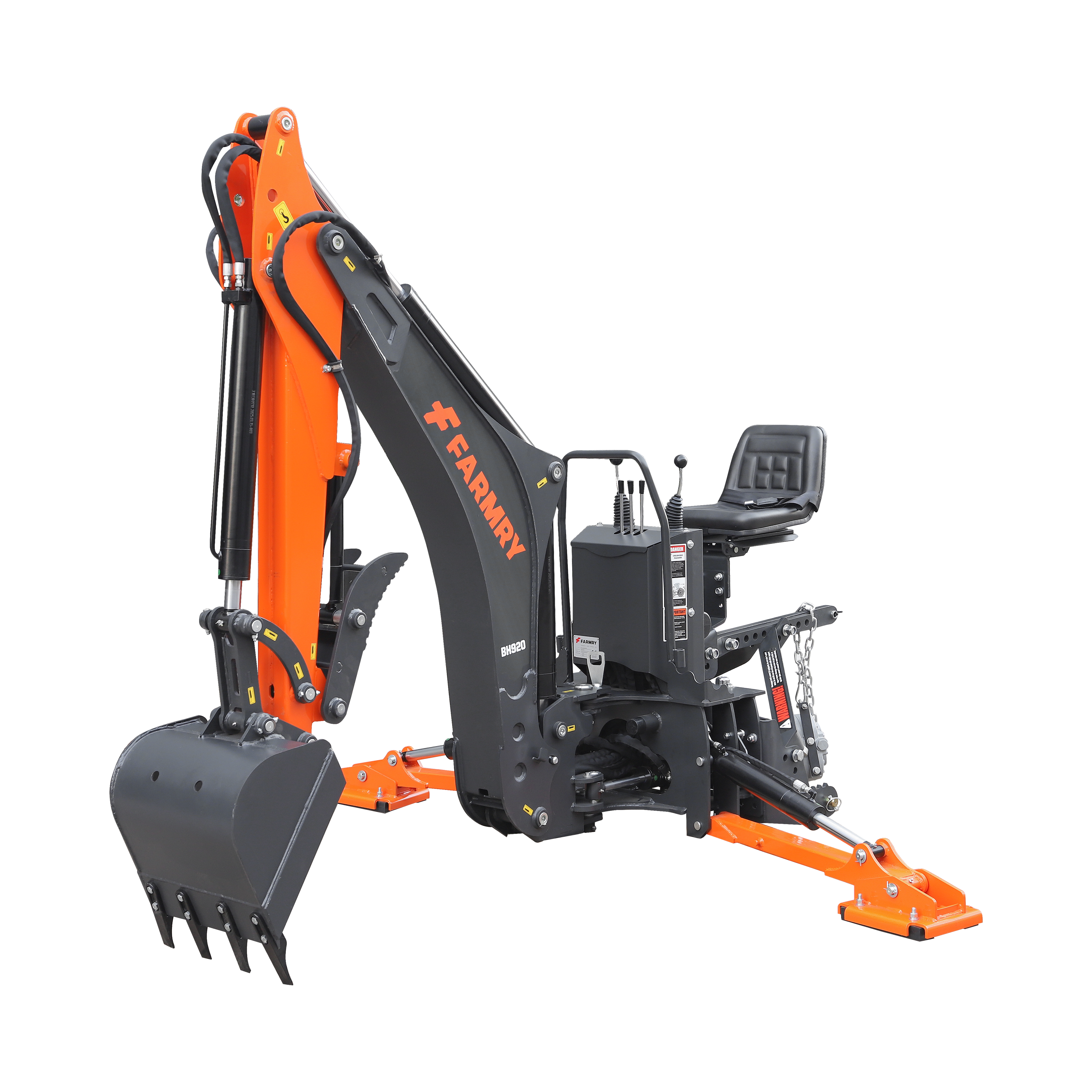

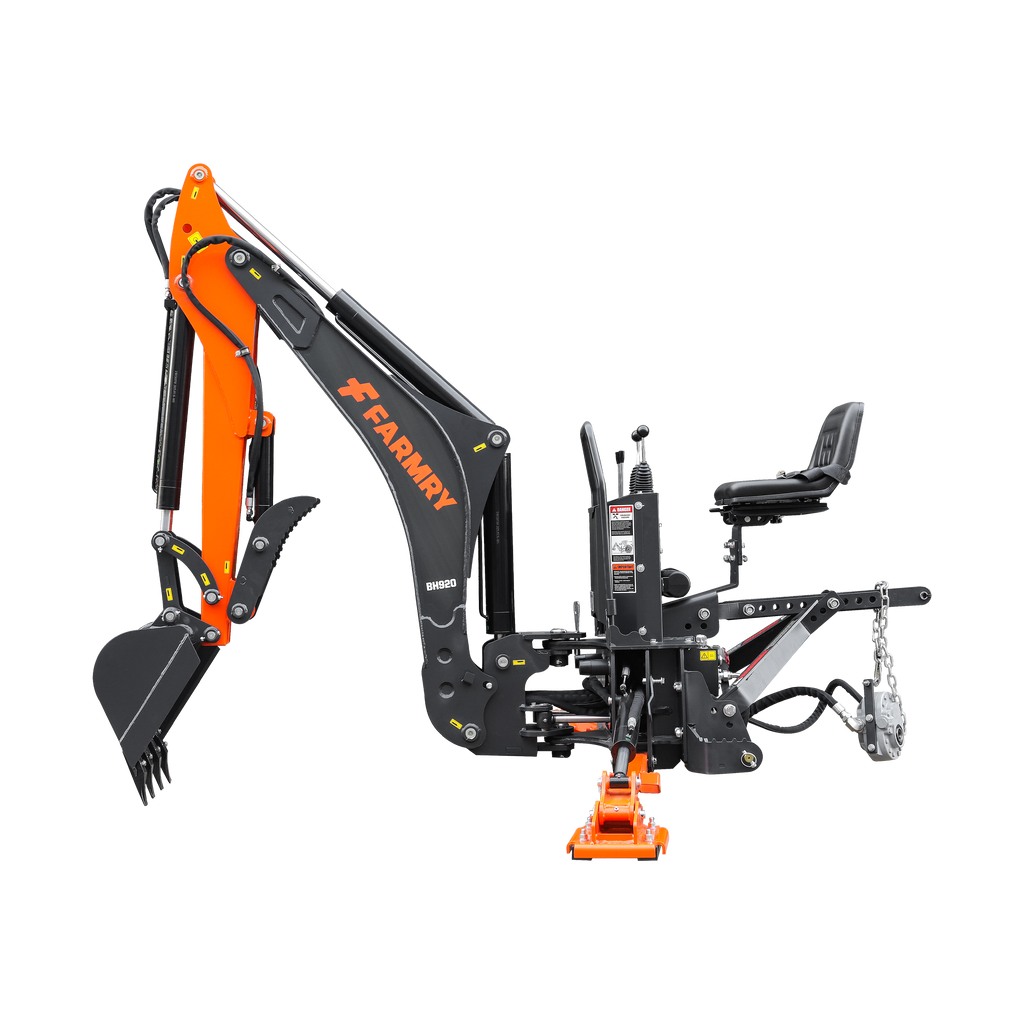

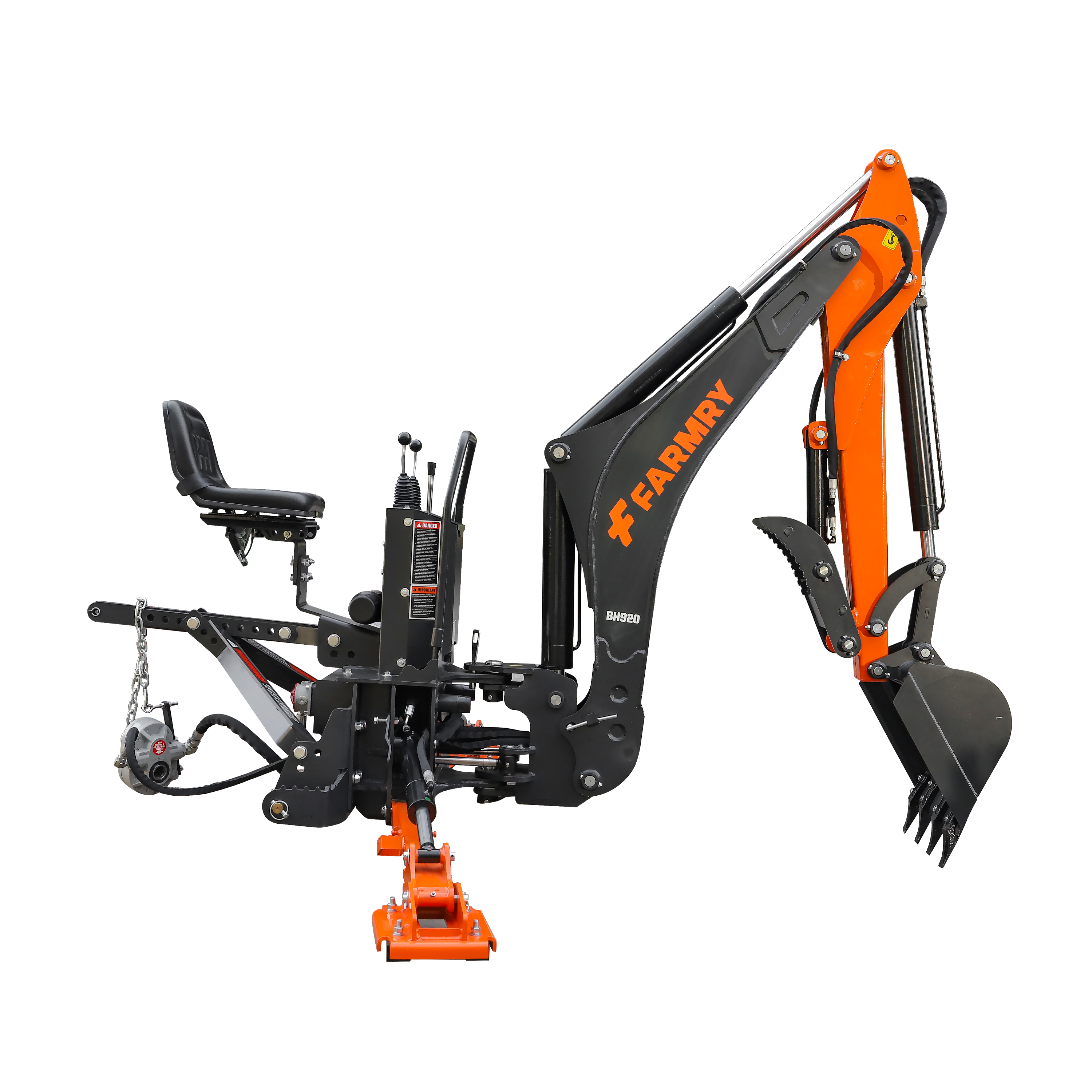

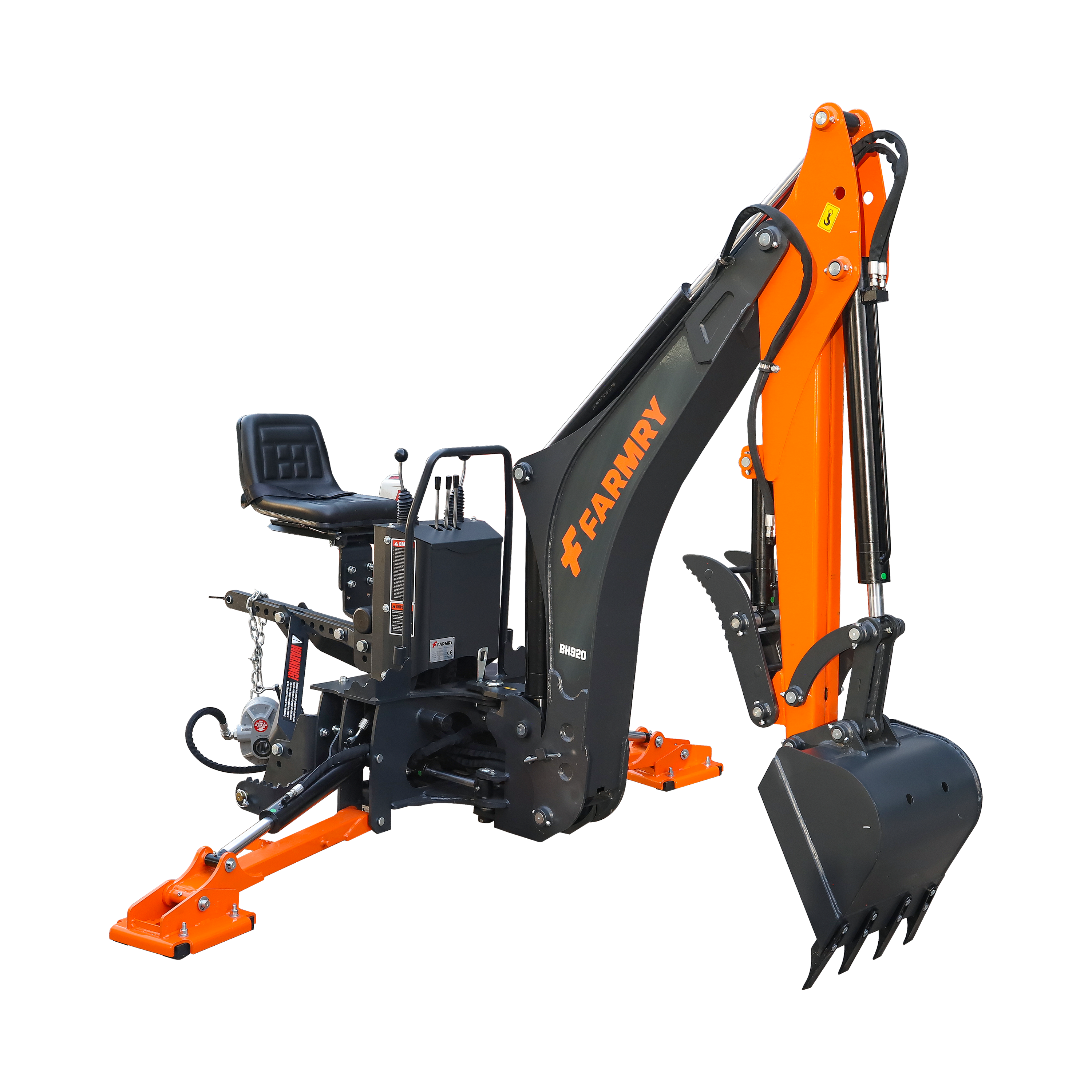

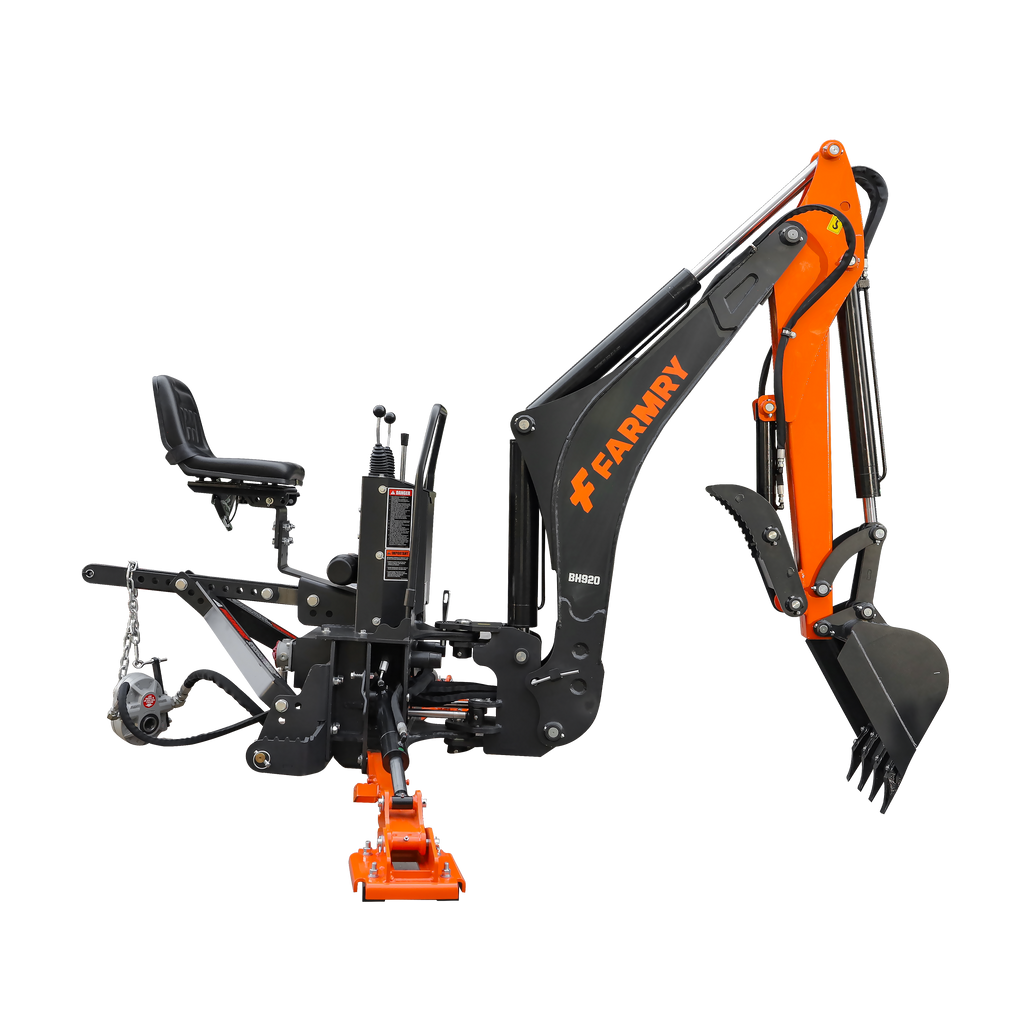

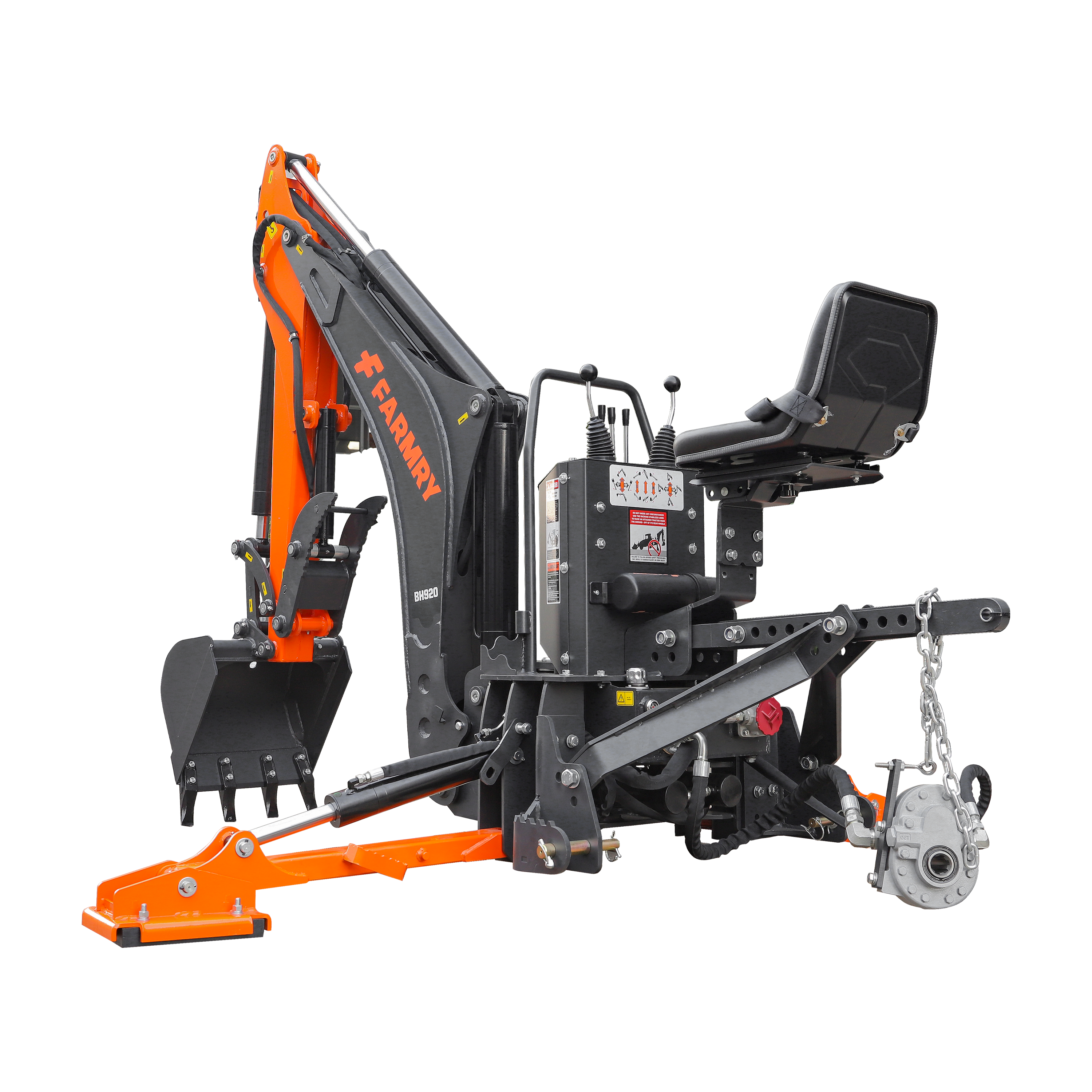

9'2" Tractor Backhoe with Curved Boom, 18" Bucket, Hydraulic Grapple Thumb, Self-Contained Gear Pump&Hydraulic Reservoir included, for 45-120 HP, Cat 2 Hookup, BH920

9'2" Tractor Backhoe with Curved Boom, 18" Bucket, Hydraulic Grapple Thumb, Self-Contained Gear Pump&Hydraulic Reservoir included, for 45-120 HP, Cat 2 Hookup, BH920

$4,129.30 $7,099.00
Max Digging Depth 9'4"
Digging depth (2 ft. flat bottom) 9′2″
Overall Operating Height（Fully Raised） 130″
Reach from Swing POST 143″
Loading Height（bucket at 60°rotation） 77″
Transport Height（with  boom fully retracted） 89″
Transport Overhang 51″
Ground Clearance 10.5″
Stabilizer Width 93″
Stabilizer Width（Transport） 65″
Engine HP Range（Tractor） 45-120 HP
Main Boom Cylinder Diameter 3.1"
Dipper Cylinder Diameter 2.8"
Bucket Cylinder Diameter 2.4"
Thumb Cylinder Diameter 2.0"
Number of Swing Cylinder 2
Swing Cylinder Diameter 2.4"
Stabilizer Cylinder Diameter 2.4"
Flow Divider Not included
Tank Capacity 3.2 Gallon
Pump Flow Rate 7 GPM
Bucket Rotation 180°
Dipper Boom Digging Force 2940 lbs
Bucket Digging Force 3635 lbs
Weight W/bucket 1314 lbs
Shipping Weight 1512 lbs
Transport Dimensions（L×W×H） 66″×30″×85″
Operating Pressure 2320 psi
Mounting System 3-point Hitch CAT.II
Recommended Hydraulic Oil ISO VG 46
Hydraulic Tank Capacity 3.2 gal (12 L)
Hydraulic Oil & Maintenance
