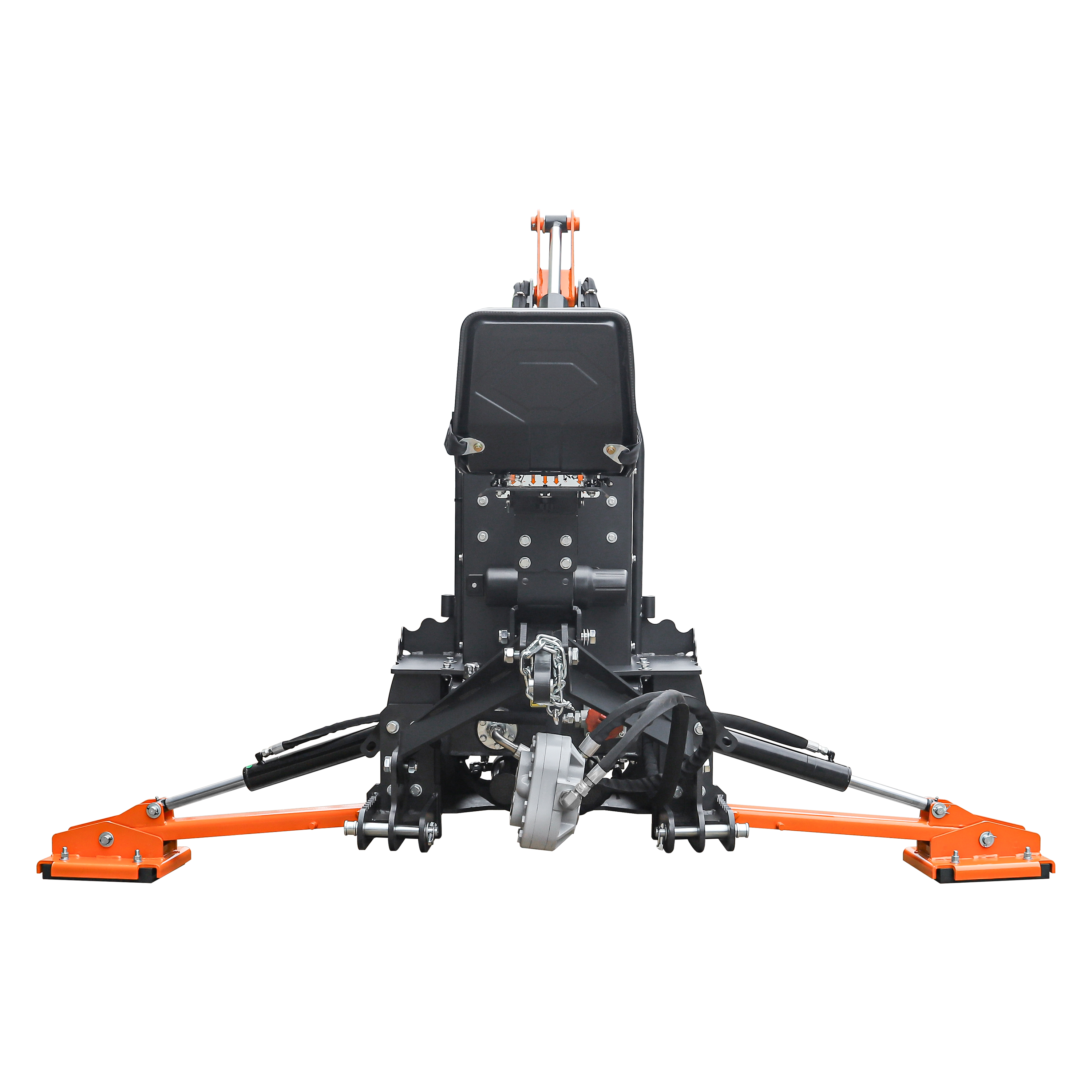

7' Tractor Backhoe with Curved Boom, 12" Bucket, Hydraulic Grapple Thumb, Self-Contained Gear Pump&Hydraulic Reservoir included, for 25-45 HP, Cat 1&2 Hookup, BH700

7' Tractor Backhoe with Curved Boom, 12" Bucket, Hydraulic Grapple Thumb, Self-Contained Gear Pump&Hydraulic Reservoir included, for 25-45 HP, Cat 1&2 Hookup, BH700

$3,429.30 $6,099.00
Skip to product information
7' Tractor Backhoe with Curved Boom, 12" Bucket, Hydraulic Grapple Thumb, Self-Contained Gear Pump&Hydraulic Reservoir included, for 25-45 HP, Cat 1&2 Hookup, BH700
  • 7' Tractor Backhoe with Curved Boom, 12" Bucket, Hydraulic Grapple Thumb, Self-Contained Gear Pump&Hydraulic Reservoir included, for 25-45 HP, Cat 1&2 Hookup, BH700
  • 7' Tractor Backhoe with Curved Boom, 12" Bucket, Hydraulic Grapple Thumb, Self-Contained Gear Pump&Hydraulic Reservoir included, for 25-45 HP, Cat 1&2 Hookup, BH700
  • 7' Tractor Backhoe with Curved Boom, 12" Bucket, Hydraulic Grapple Thumb, Self-Contained Gear Pump&Hydraulic Reservoir included, for 25-45 HP, Cat 1&2 Hookup, BH700
  • 7' Tractor Backhoe with Curved Boom, 12" Bucket, Hydraulic Grapple Thumb, Self-Contained Gear Pump&Hydraulic Reservoir included, for 25-45 HP, Cat 1&2 Hookup, BH700
  • 7' Tractor Backhoe with Curved Boom, 12" Bucket, Hydraulic Grapple Thumb, Self-Contained Gear Pump&Hydraulic Reservoir included, for 25-45 HP, Cat 1&2 Hookup, BH700
  • 7' Tractor Backhoe with Curved Boom, 12" Bucket, Hydraulic Grapple Thumb, Self-Contained Gear Pump&Hydraulic Reservoir included, for 25-45 HP, Cat 1&2 Hookup, BH700
  • 7' Tractor Backhoe with Curved Boom, 12" Bucket, Hydraulic Grapple Thumb, Self-Contained Gear Pump&Hydraulic Reservoir included, for 25-45 HP, Cat 1&2 Hookup, BH700
  • 7' Tractor Backhoe with Curved Boom, 12" Bucket, Hydraulic Grapple Thumb, Self-Contained Gear Pump&Hydraulic Reservoir included, for 25-45 HP, Cat 1&2 Hookup, BH700
  • 7' Tractor Backhoe with Curved Boom, 12" Bucket, Hydraulic Grapple Thumb, Self-Contained Gear Pump&Hydraulic Reservoir included, for 25-45 HP, Cat 1&2 Hookup, BH700
  • 7' Tractor Backhoe with Curved Boom, 12" Bucket, Hydraulic Grapple Thumb, Self-Contained Gear Pump&Hydraulic Reservoir included, for 25-45 HP, Cat 1&2 Hookup, BH700
  • 7' Tractor Backhoe with Curved Boom, 12" Bucket, Hydraulic Grapple Thumb, Self-Contained Gear Pump&Hydraulic Reservoir included, for 25-45 HP, Cat 1&2 Hookup, BH700
  • 7' Tractor Backhoe with Curved Boom, 12" Bucket, Hydraulic Grapple Thumb, Self-Contained Gear Pump&Hydraulic Reservoir included, for 25-45 HP, Cat 1&2 Hookup, BH700
  • 7' Tractor Backhoe with Curved Boom, 12" Bucket, Hydraulic Grapple Thumb, Self-Contained Gear Pump&Hydraulic Reservoir included, for 25-45 HP, Cat 1&2 Hookup, BH700
  • 7' Tractor Backhoe with Curved Boom, 12" Bucket, Hydraulic Grapple Thumb, Self-Contained Gear Pump&Hydraulic Reservoir included, for 25-45 HP, Cat 1&2 Hookup, BH700
  • 7' Tractor Backhoe with Curved Boom, 12" Bucket, Hydraulic Grapple Thumb, Self-Contained Gear Pump&Hydraulic Reservoir included, for 25-45 HP, Cat 1&2 Hookup, BH700
  • 7' Tractor Backhoe with Curved Boom, 12" Bucket, Hydraulic Grapple Thumb, Self-Contained Gear Pump&Hydraulic Reservoir included, for 25-45 HP, Cat 1&2 Hookup, BH700

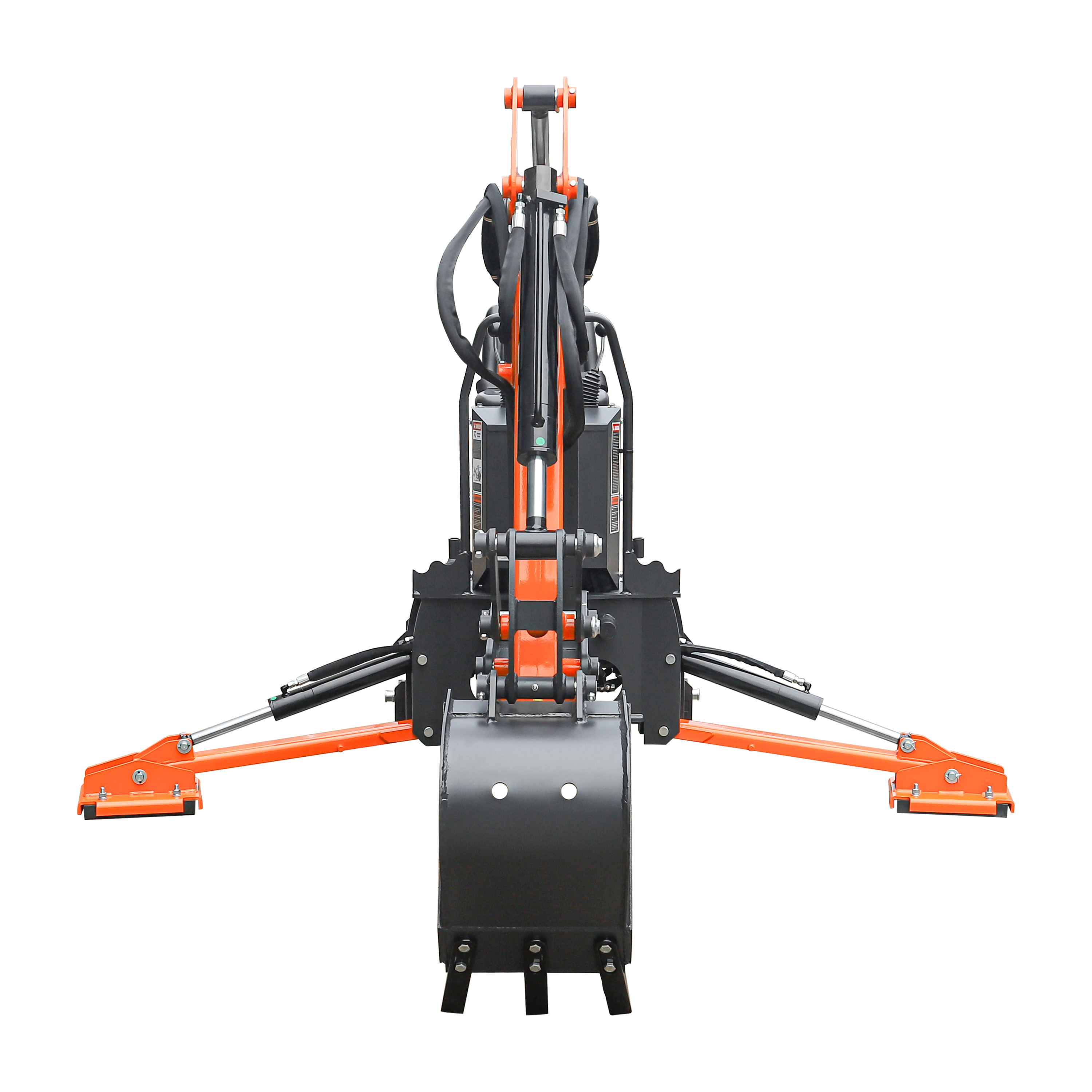

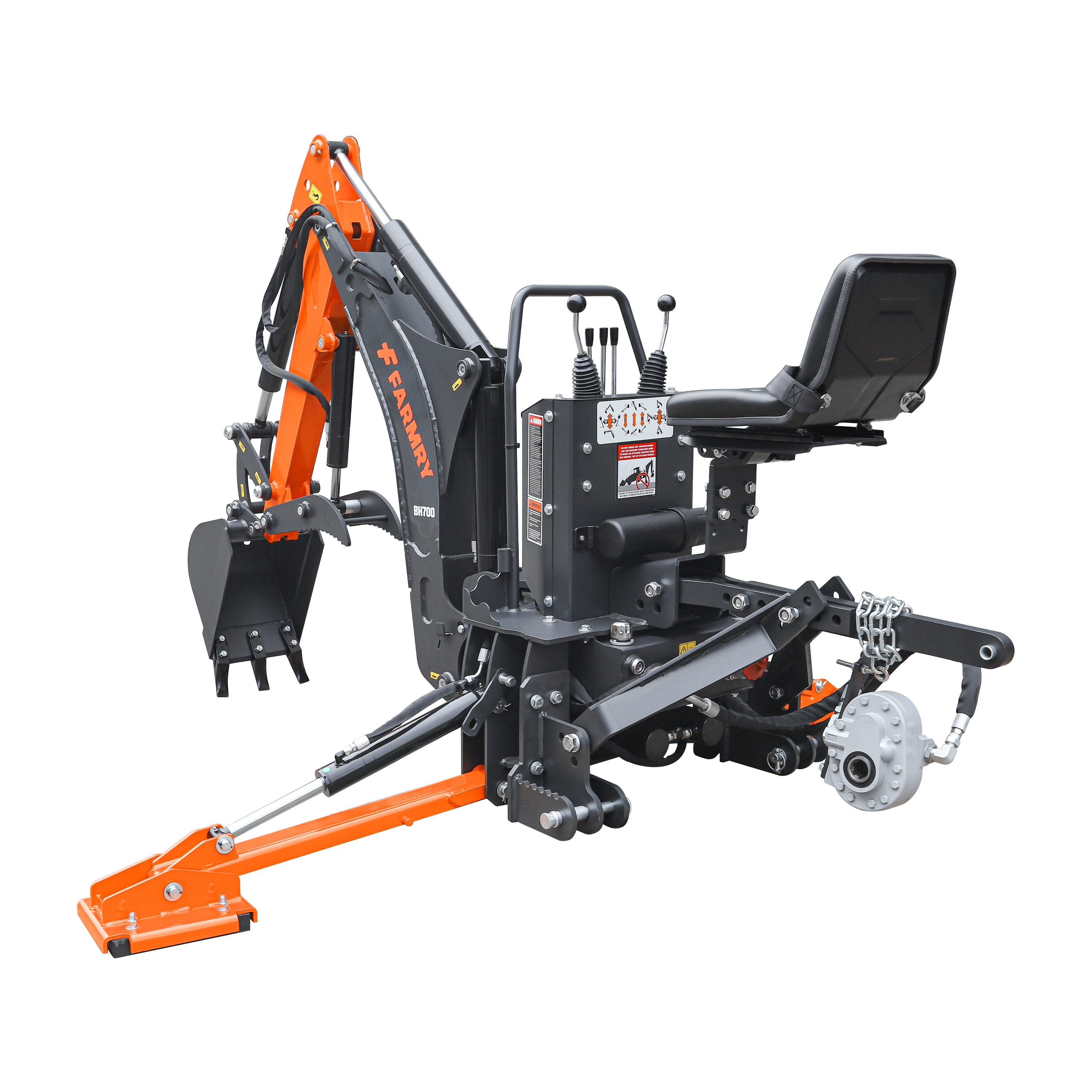

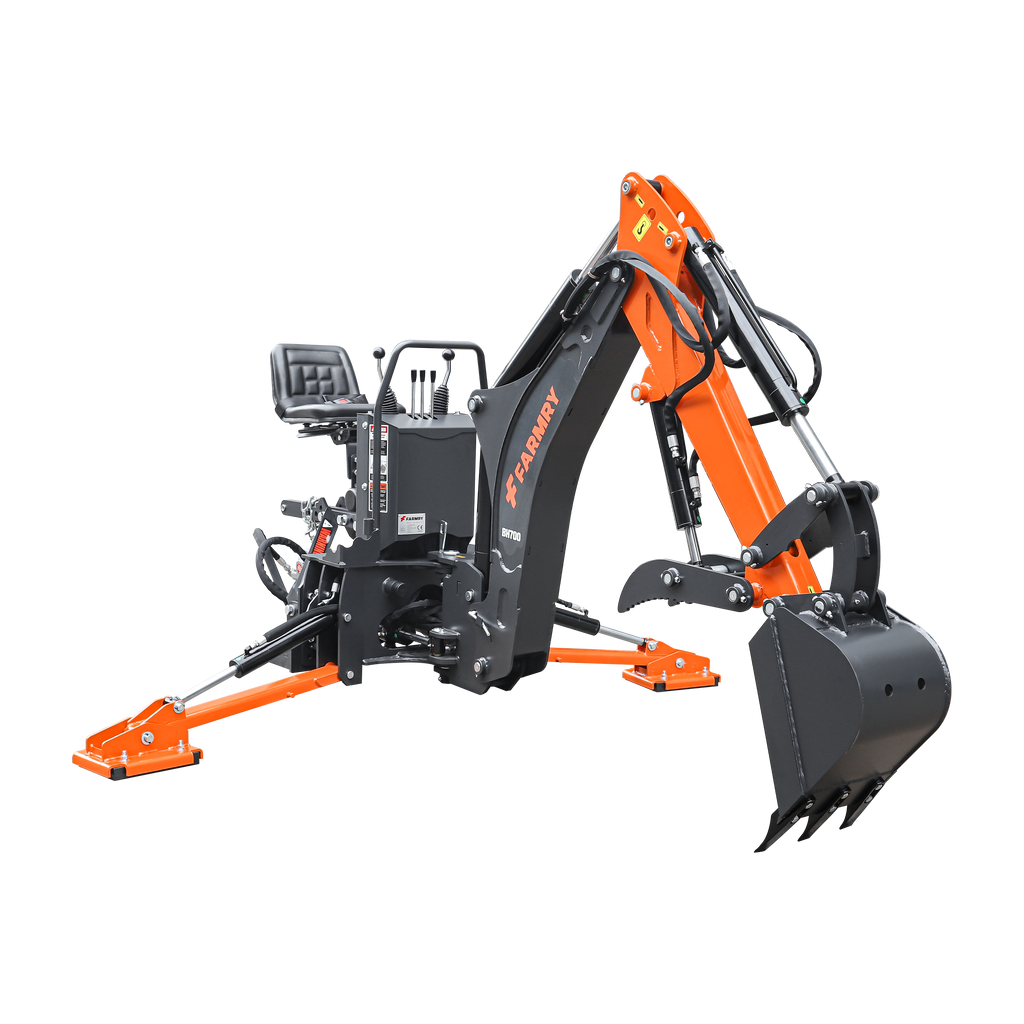

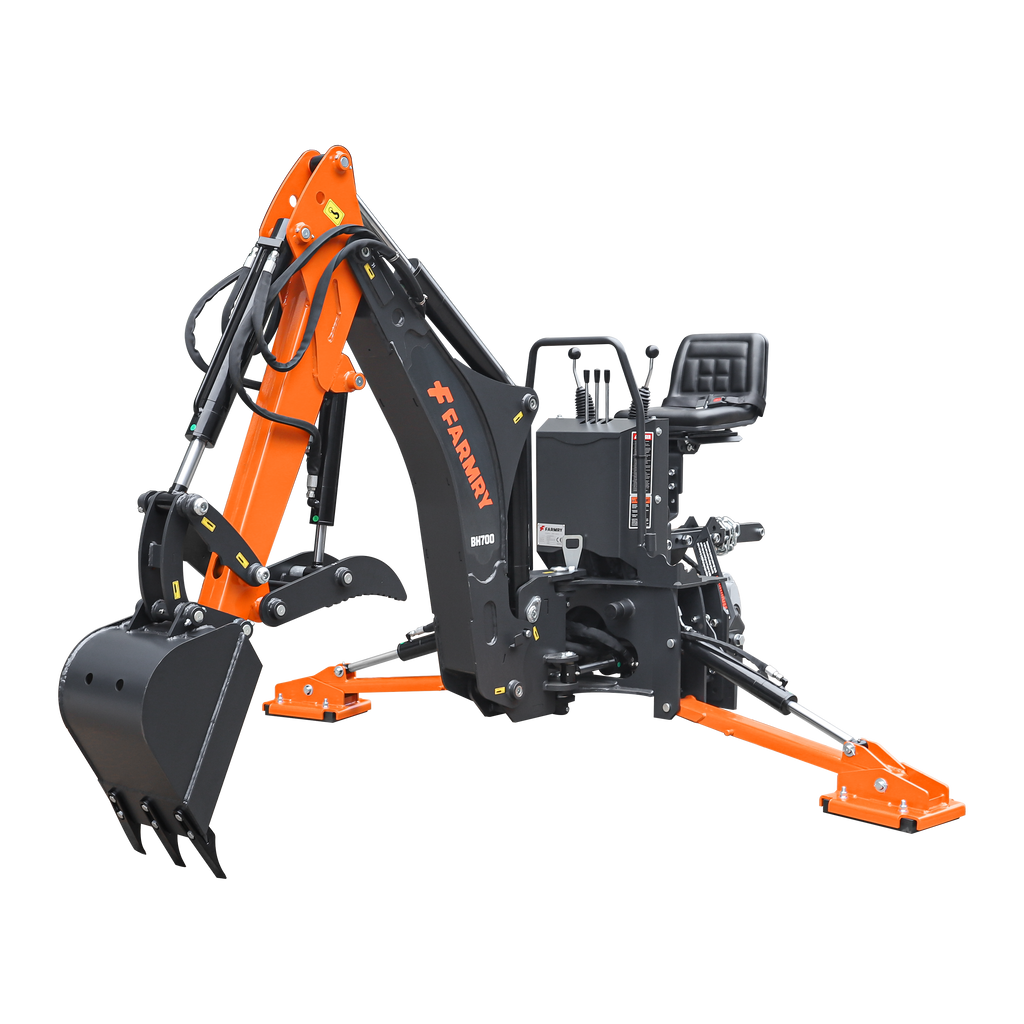

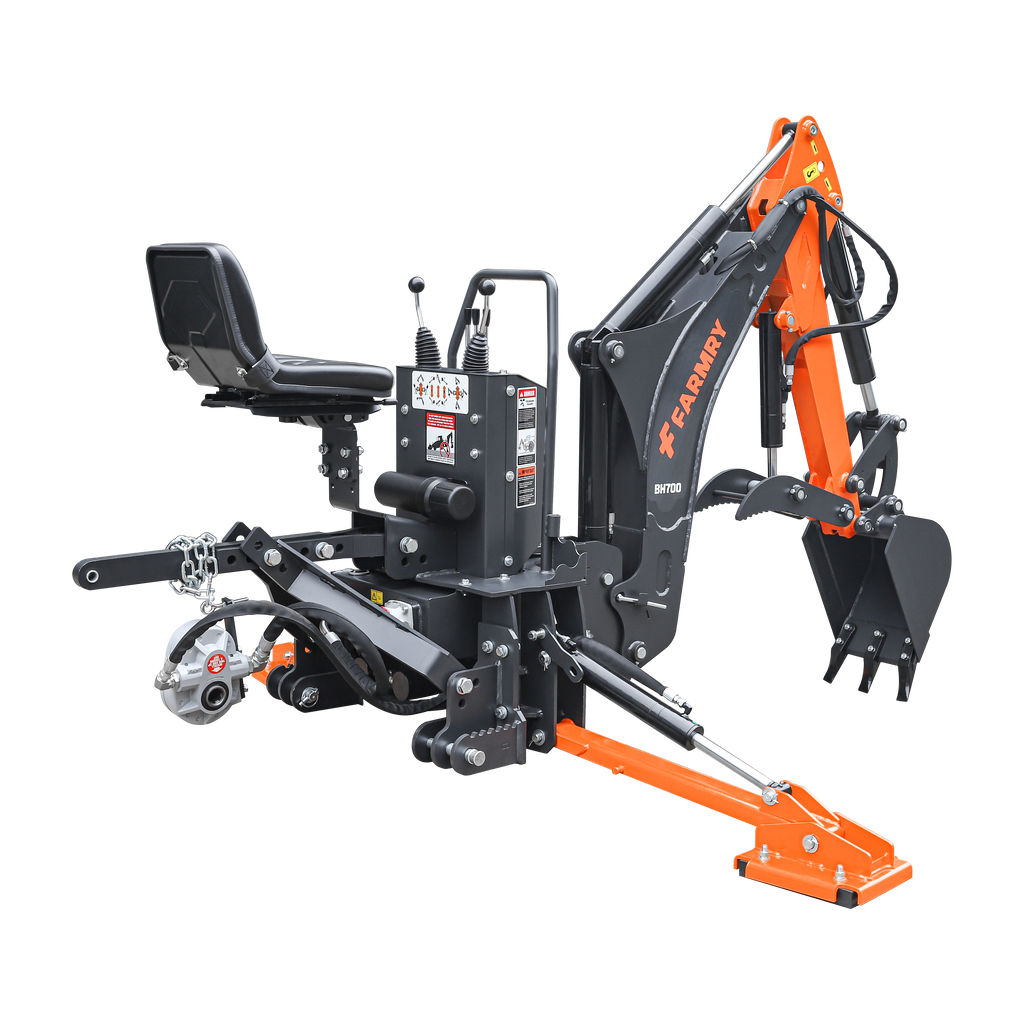

7' Tractor Backhoe with Curved Boom, 12" Bucket, Hydraulic Grapple Thumb, Self-Contained Gear Pump&Hydraulic Reservoir included, for 25-45 HP, Cat 1&2 Hookup, BH700

7' Tractor Backhoe with Curved Boom, 12" Bucket, Hydraulic Grapple Thumb, Self-Contained Gear Pump&Hydraulic Reservoir included, for 25-45 HP, Cat 1&2 Hookup, BH700

$3,429.30 $6,099.00
Max Digging Depth 7'
Digging depth (2 ft. flat bottom) 6′10″
Overall Operating Height（Fully Raised） 103″
Reach from Swing POST 118″
Loading Height（bucket at 60°rotation） 62″
Transport Height（with  boom fully retracted） 71″
Transport Overhang 48″
Ground Clearance 10.5″
Stabilizer Width 93″
Stabilizer Width（Transport） 65″
Engine HP Range（Tractor） 25-45 HP
Main Boom Cylinder Diameter 2.8"
Dipper Cylinder Diameter 2.8"
Bucket Cylinder Diameter 2.4"
Thumb Cylinder Diameter 2.0"
Number of Swing Cylinder 2
Swing Cylinder Diameter 2.4"
Stabilizer Cylinder Diameter 2.0"
Flow Divider Not included
Tank Capacity 3.2 Gallon
Pump Flow Rate 5.8 GPM
Bucket Rotation 180°
Dipper Boom Digging Force 2050 lbs
Bucket Digging Force 3180 lbs
Weight W/bucket 1091 lbs
Shipping Weight 1287 lbs
Transport Dimensions（L×W×H） 76″×30″×49″
Operating Pressure 2320 psi
Mounting System 3-point Hitch CAT.I/II
Recommended Hydraulic Oil ISO VG 46
Hydraulic Tank Capacity 3.2 gal (12 L)
Hydraulic Oil & Maintenance
