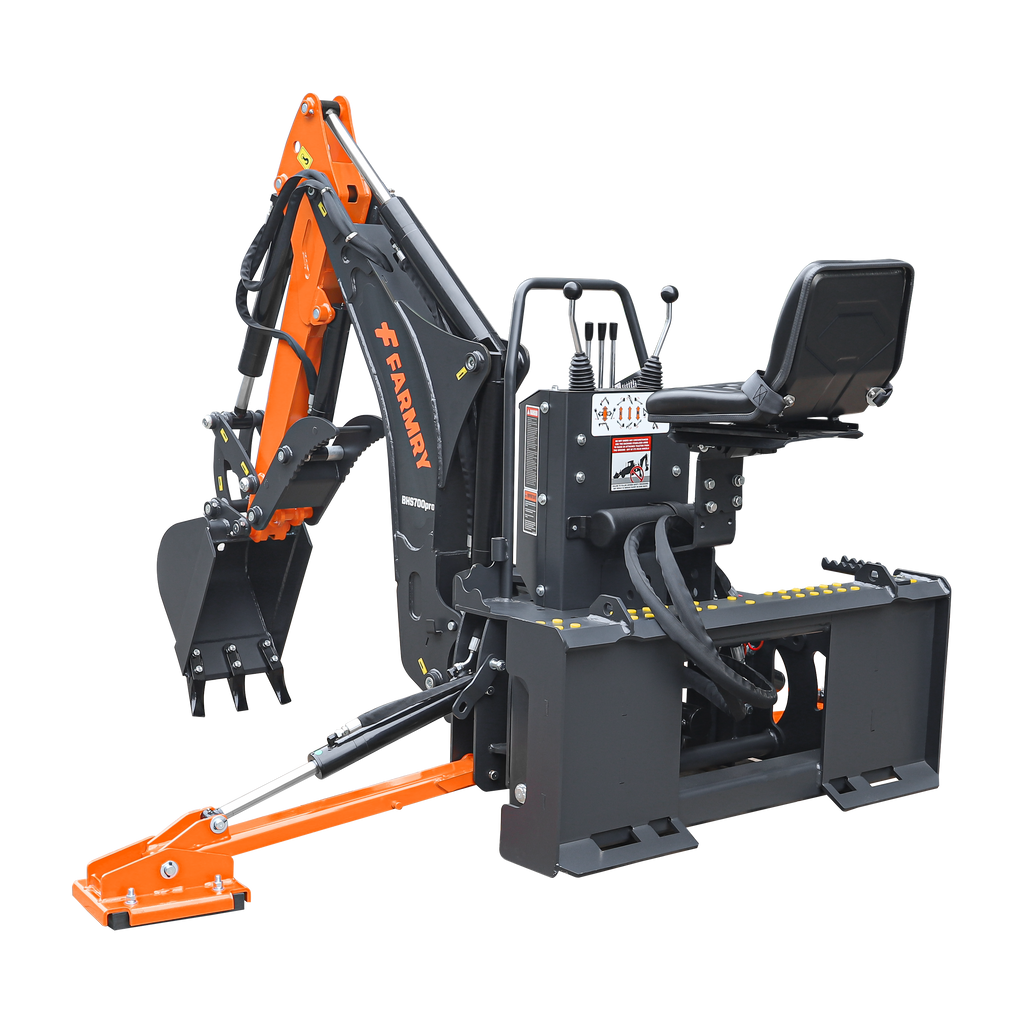

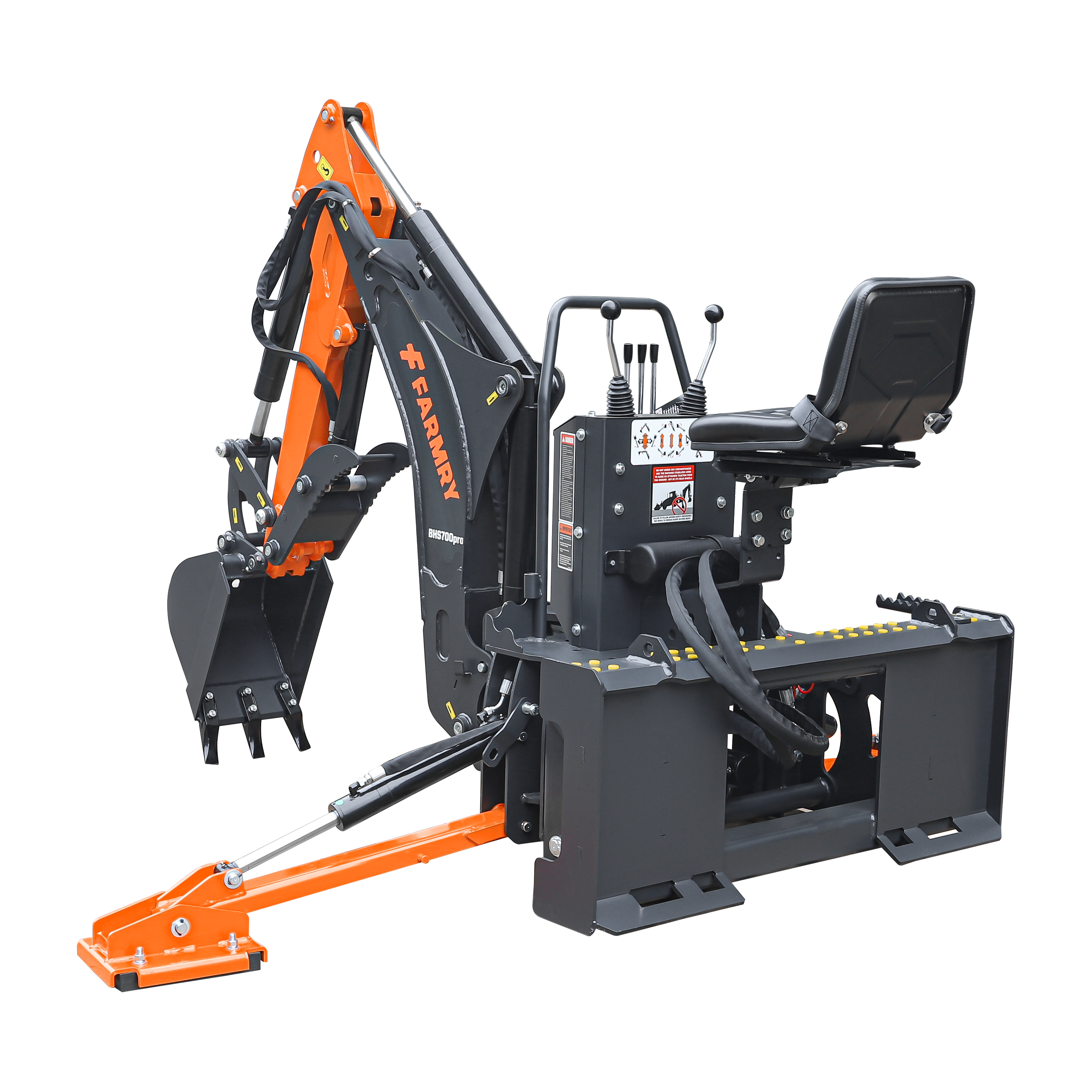

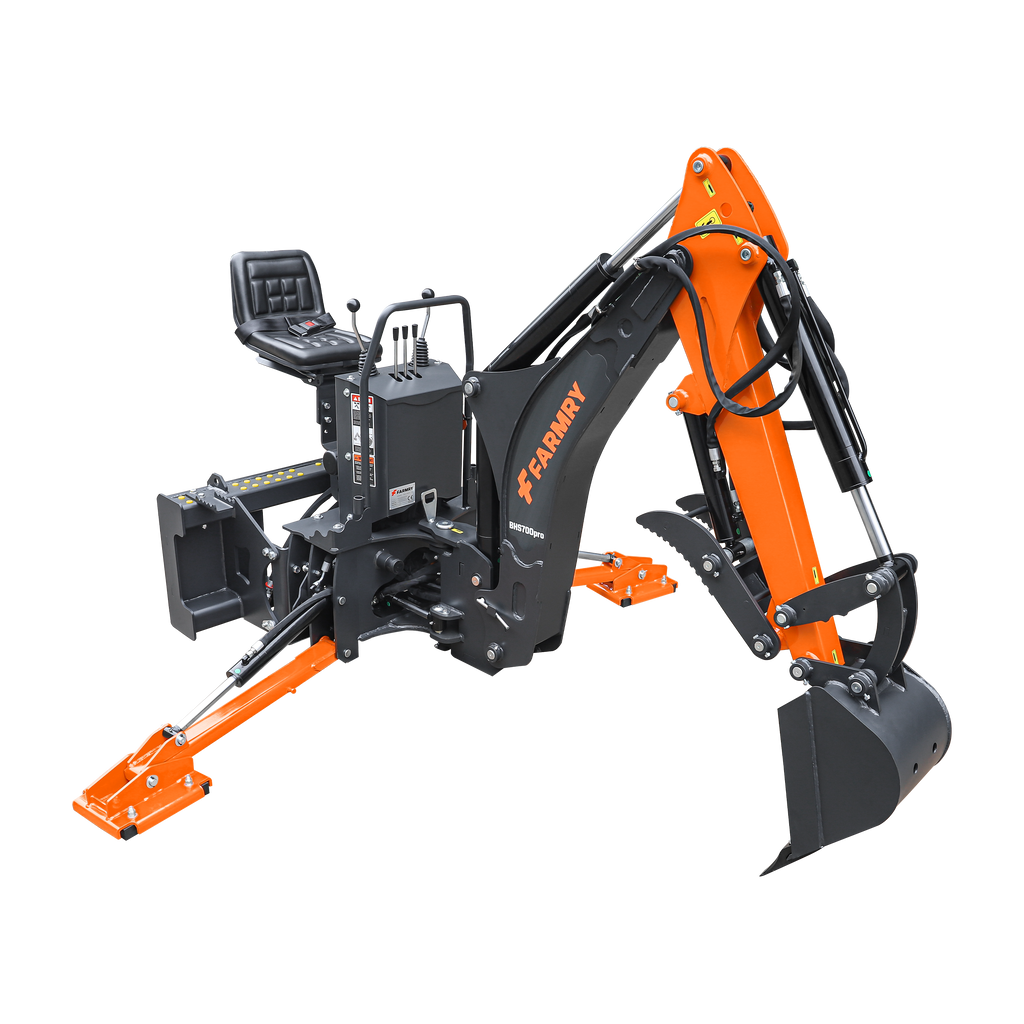

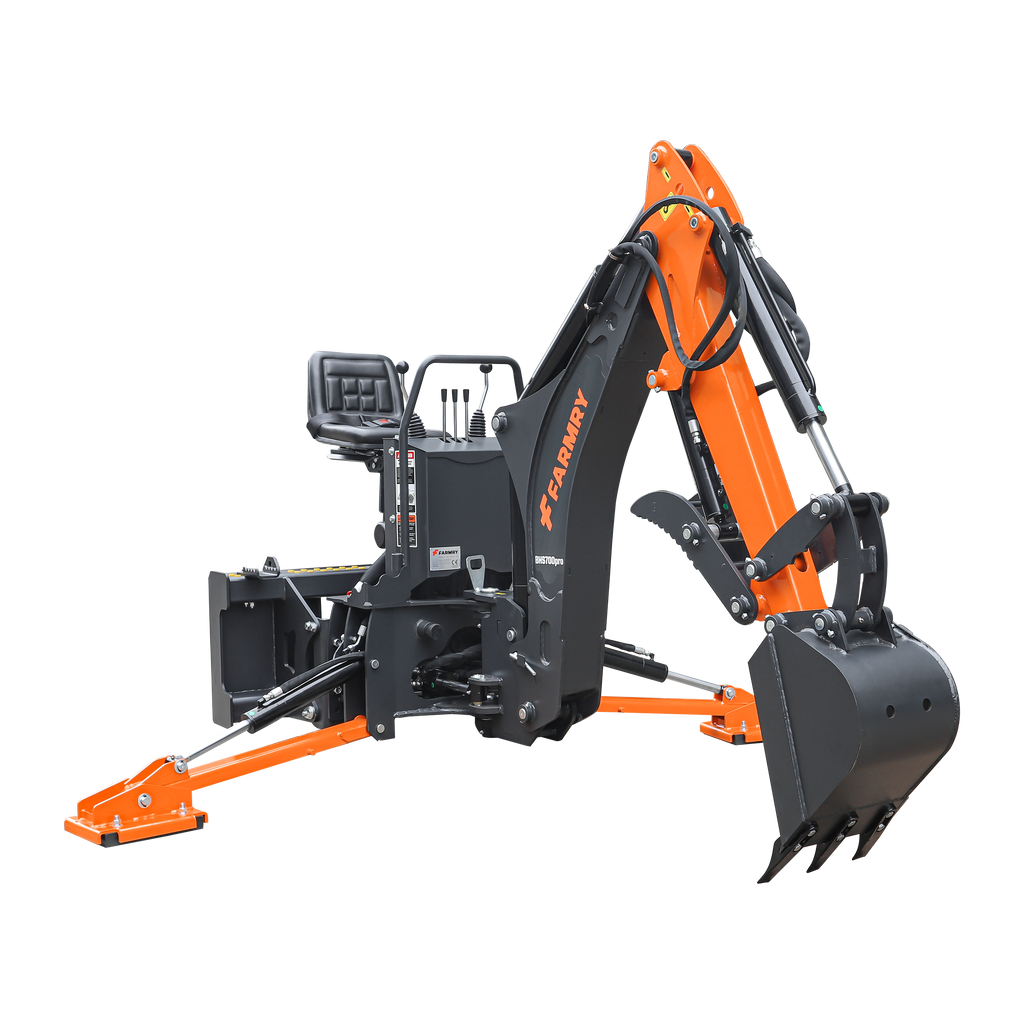

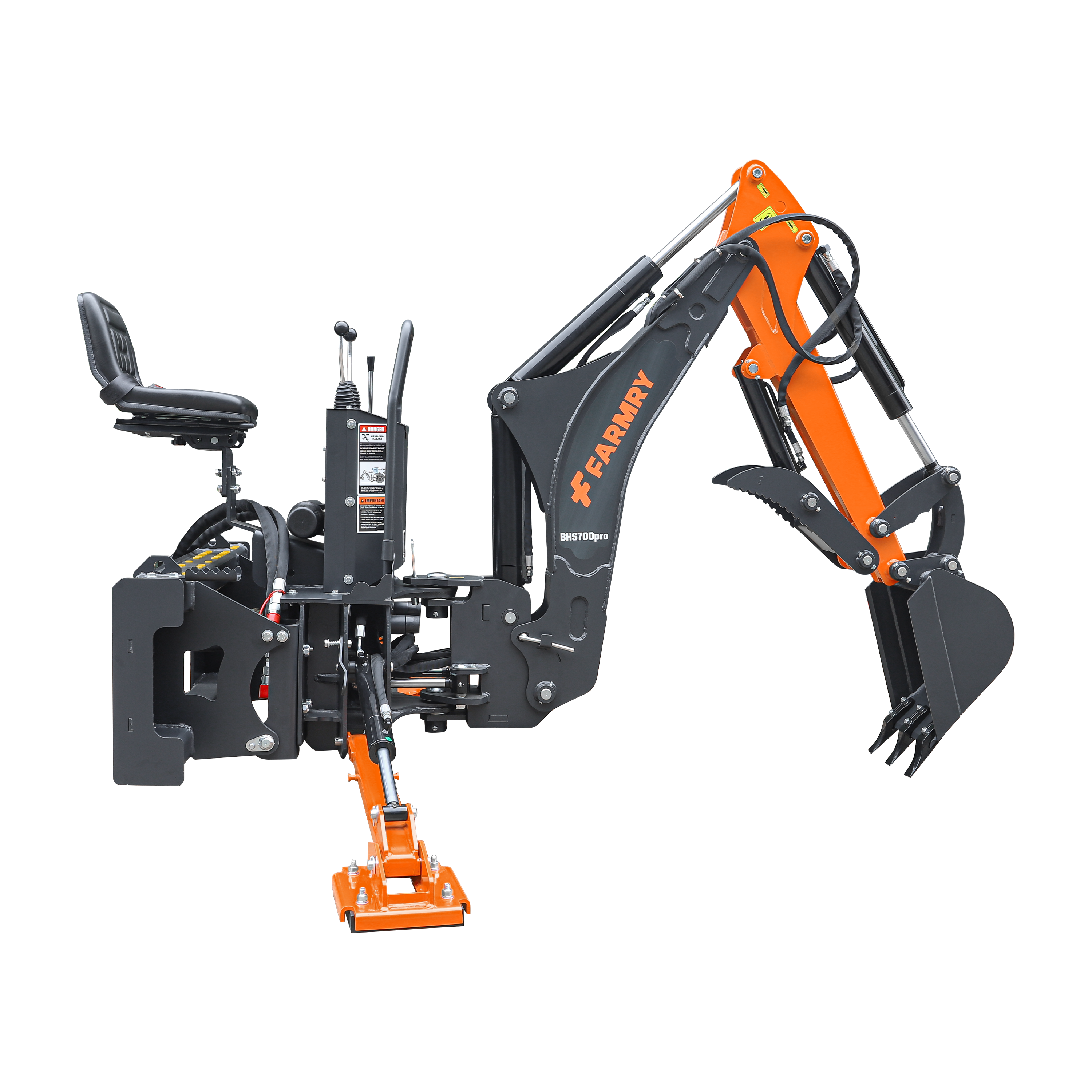

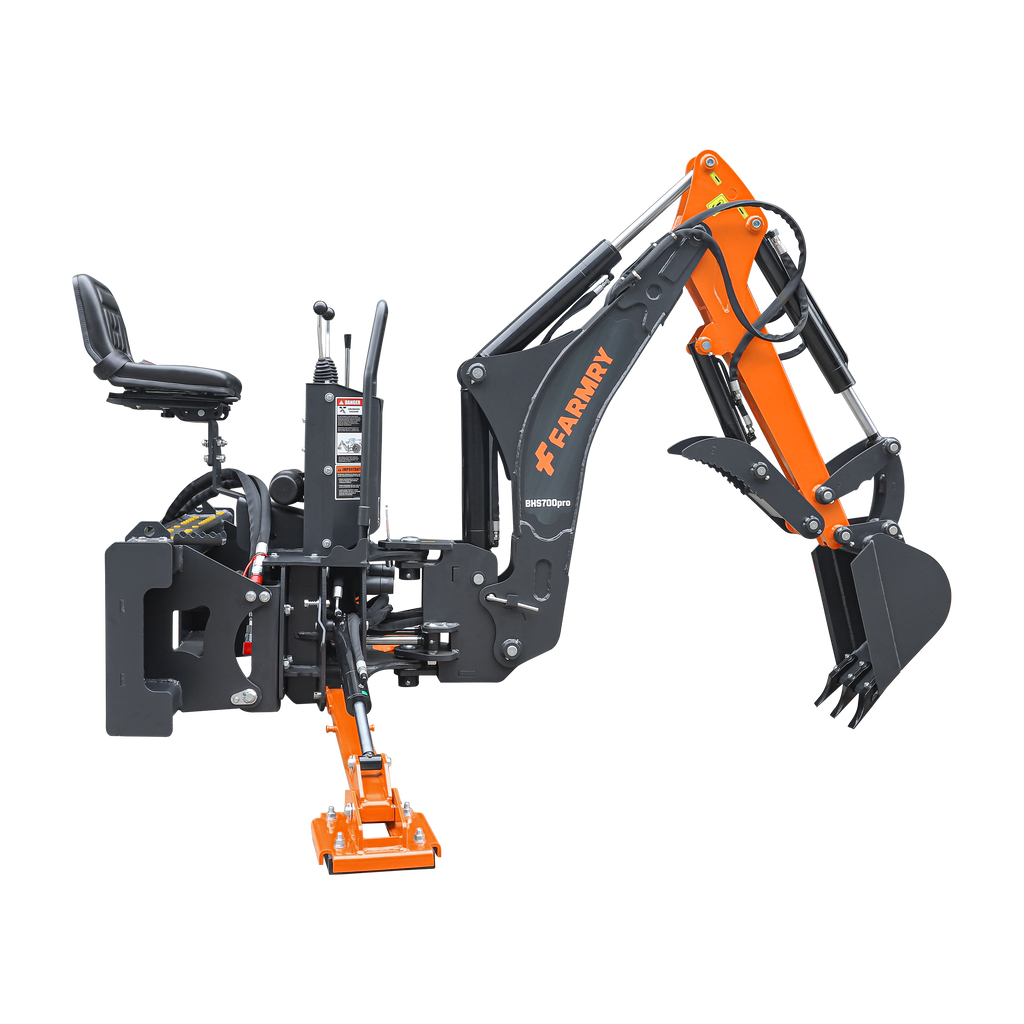

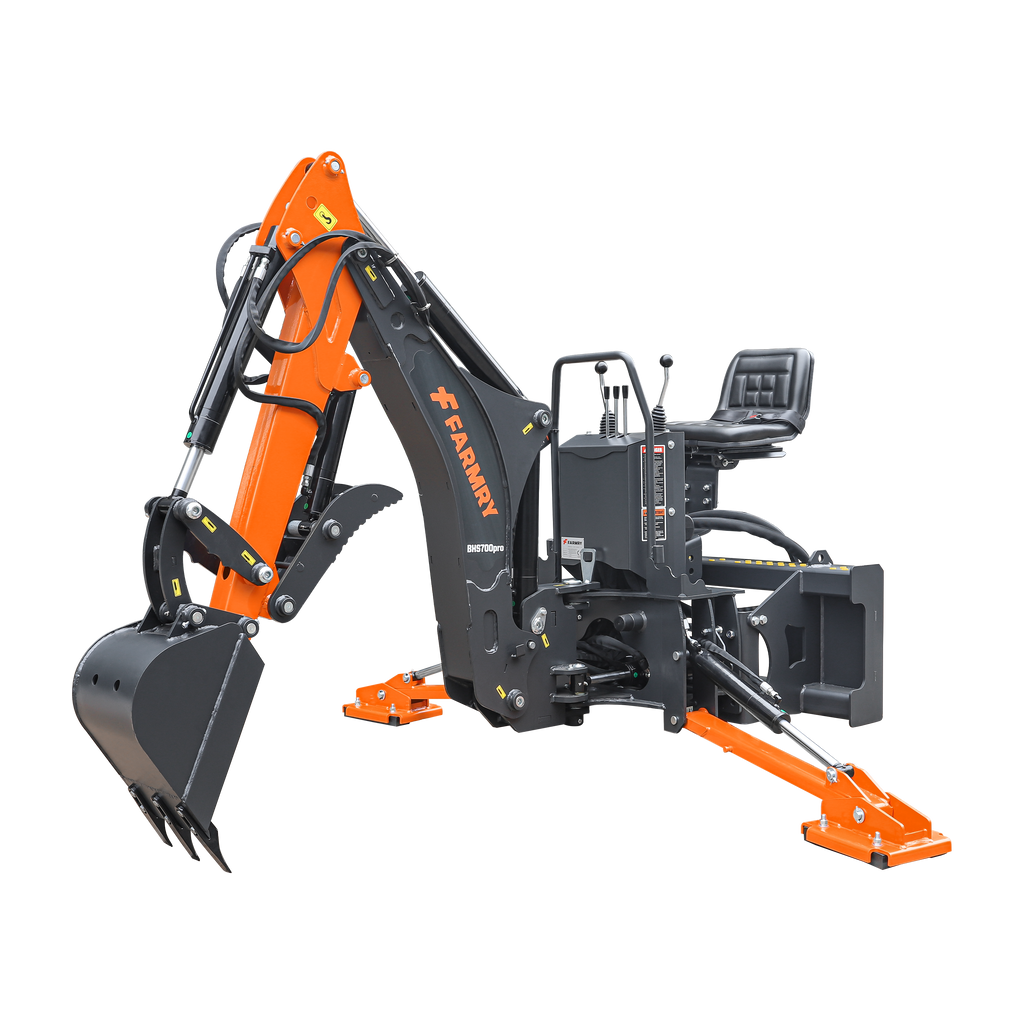

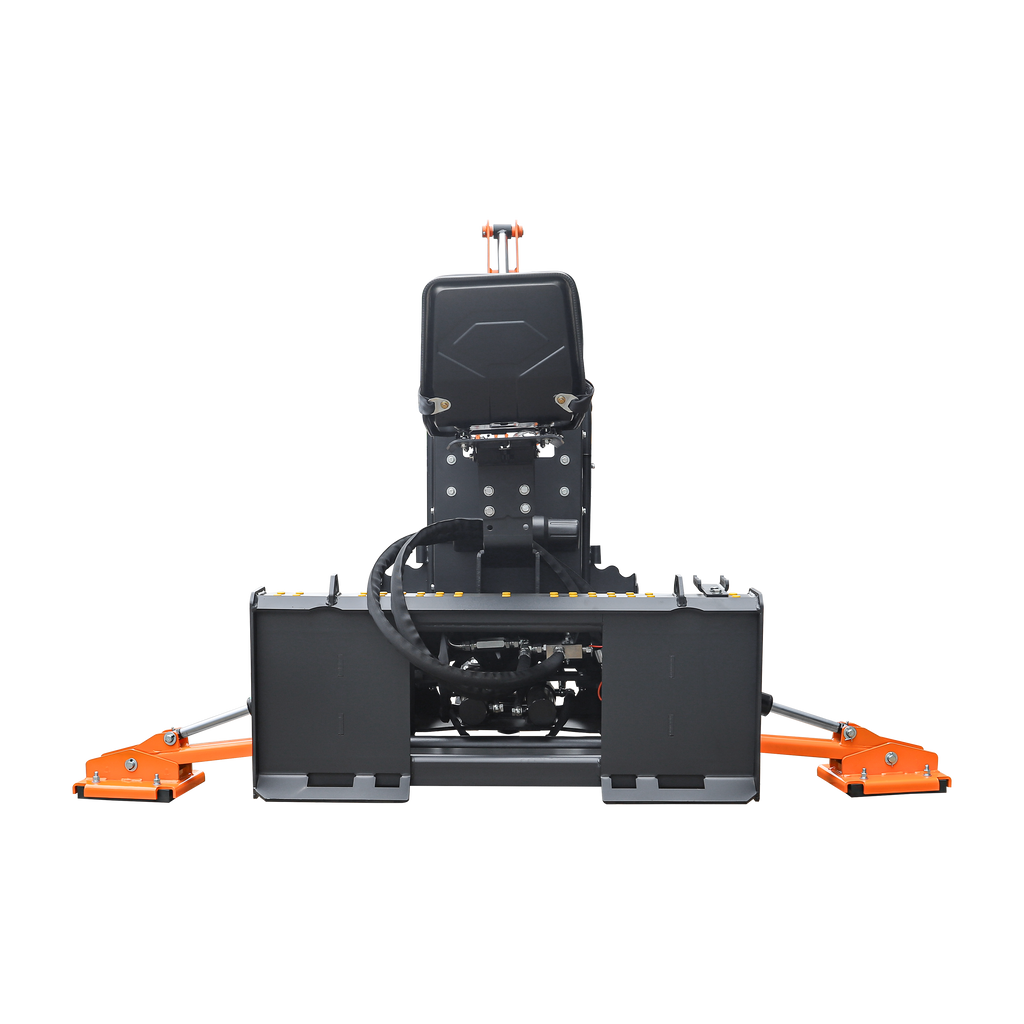

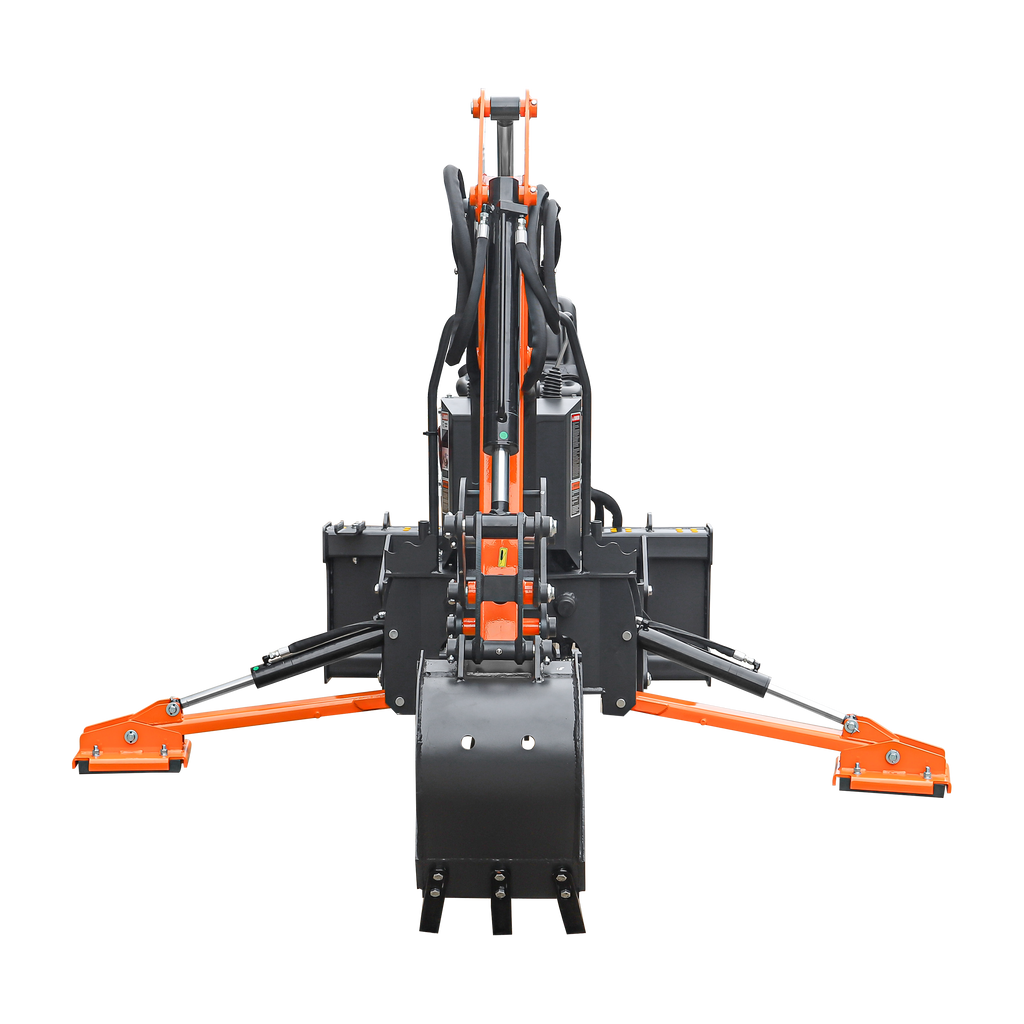

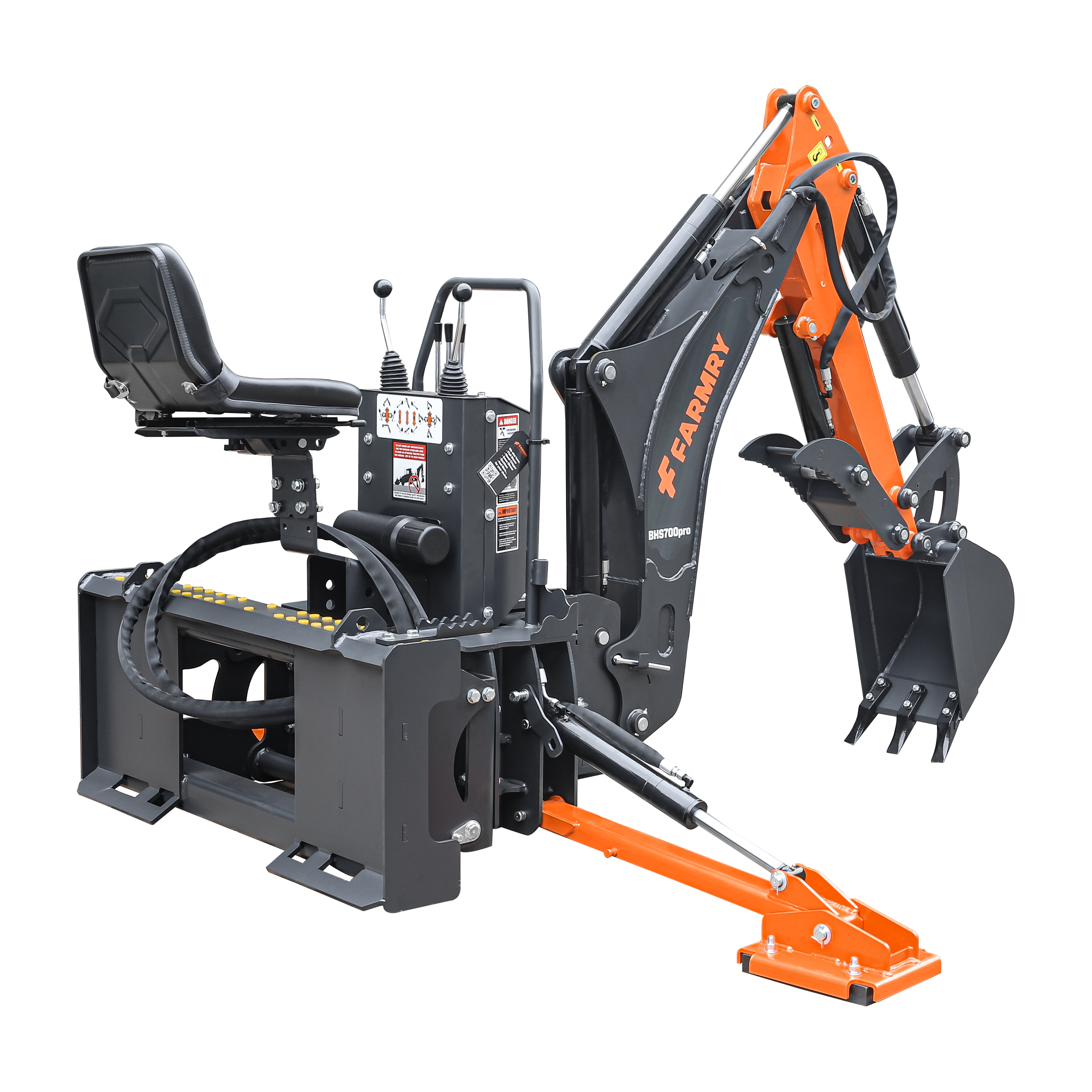

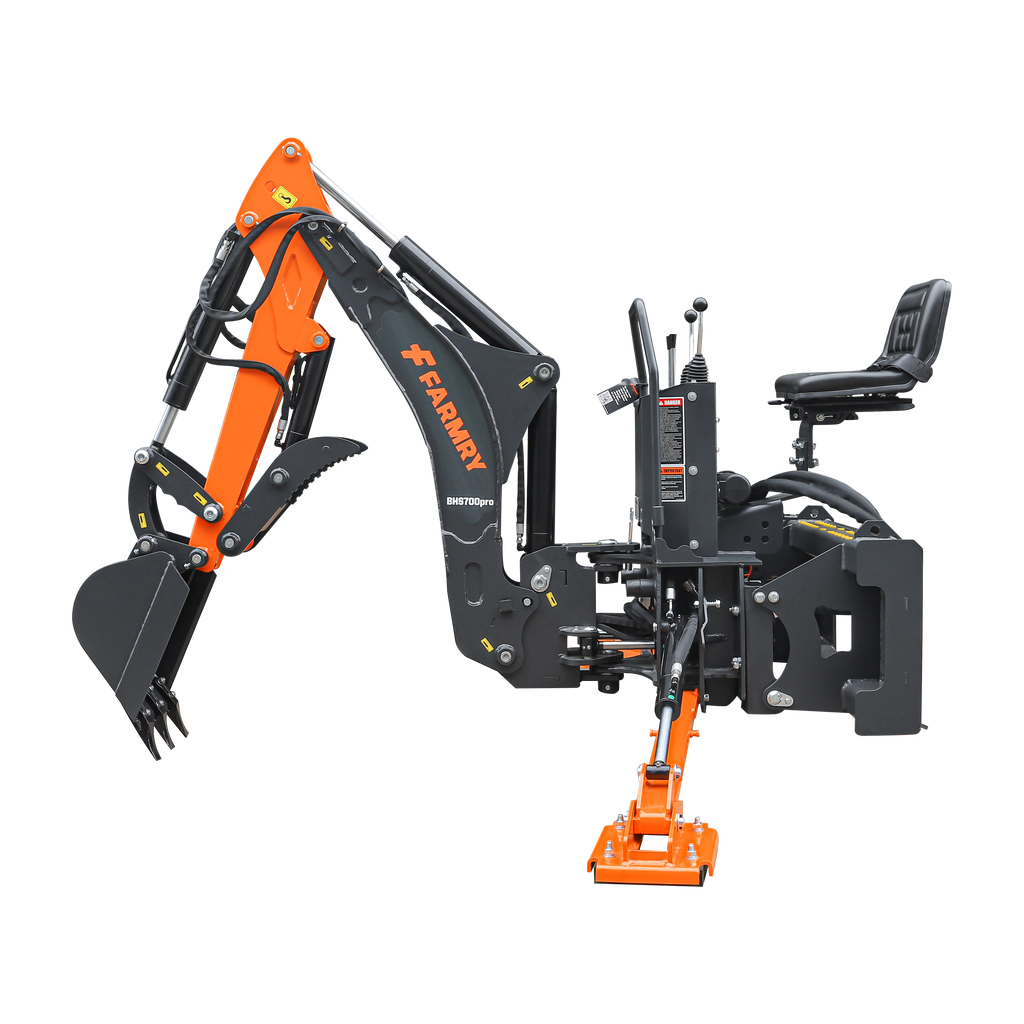

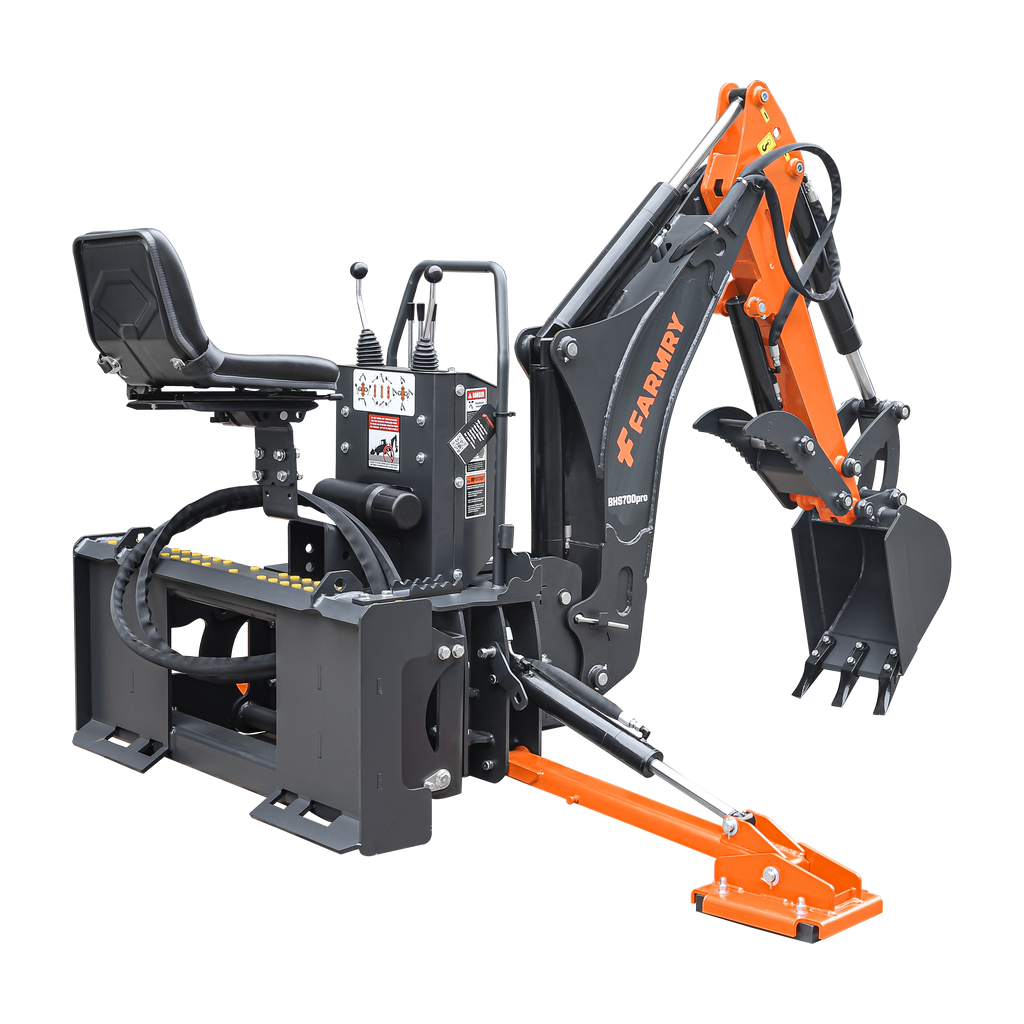

7' Skid Steer Loader Backhoe with Curved Boom, Italian Original WALVOIL Seven Way Hydraulic Control Valve, 12" Bucket, Hydraulic Grapple Thumb included, for 30-60 HP, BHS700Pro
Sale price
$3,709.30
Regular price $6,499.00
Skip to product information
7' Skid Steer Loader Backhoe with Curved Boom, Italian Original WALVOIL Seven Way Hydraulic Control Valve, 12" Bucket, Hydraulic Grapple Thumb included, for 30-60 HP, BHS700Pro
Sale price
$3,709.30
Regular price $6,499.00
| Max Digging Depth | 7' |
| Digging depth (2 ft. flat bottom) | 6′10″ |
| Overall Operating Height（Fully Raised） | 103″ |
| Reach from Swing POST | 118″ |
| Loading Height（bucket at 60°rotation） | 62″ |
| Transport Height（with boom fully retracted） | 71″ |
| Transport Overhang | 48″ |
| Ground Clearance | 10.5″ |

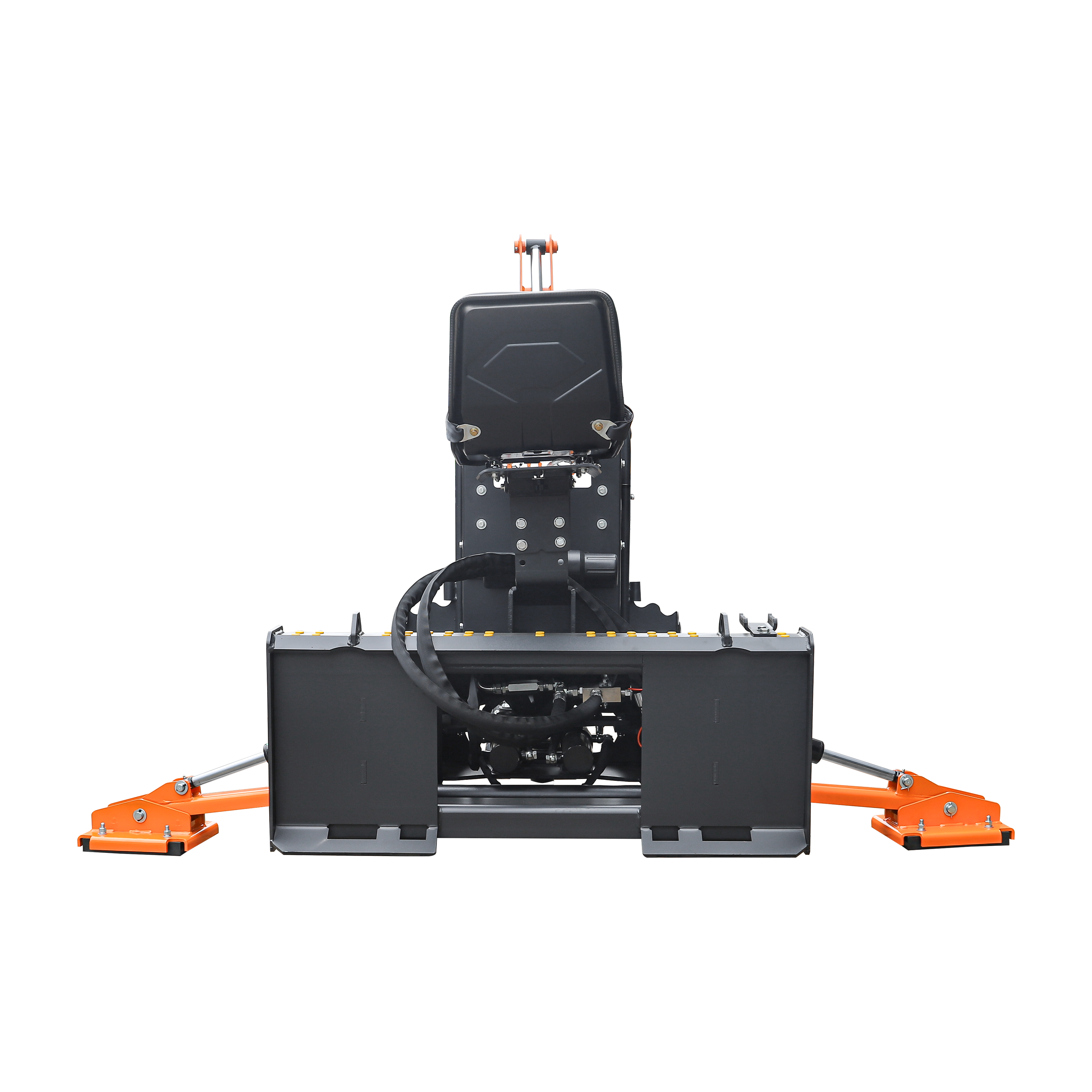

| Stabilizer Width | 93″ |
| Stabilizer Width（Transport） | 65″ |
| Engine HP Range（Skidsteer） | 30-60 HP |
| Required Hydraulic Flow | 5-7 GPM |
| Main Boom Cylinder Diameter | 2.8" |
| Dipper Cylinder Diameter | 2.8" |
| Bucket Cylinder Diameter | 2.4" |
| Thumb Cylinder Diameter | 2.0" |
| Number of Swing Cylinder | 2 |
| Swing Cylinder Diameter | 2.4" |
| Stabilizer Cylinder Diameter | 2.0" |
| Flow Divider | included |
| Bucket Rotation | 180° |
| Swing Arc | 180° |
| Dipper Boom Digging Force | 2050 lbs |
| Bucket Digging Force | 3180 lbs |
| Weight W/bucket | 1197 lbs |
| Shipping Weight | 1413 lbs |
| Transport Dimensions（L×W×H） | 76″×30″×49″ |
| Operating Pressure | 2320 psi |

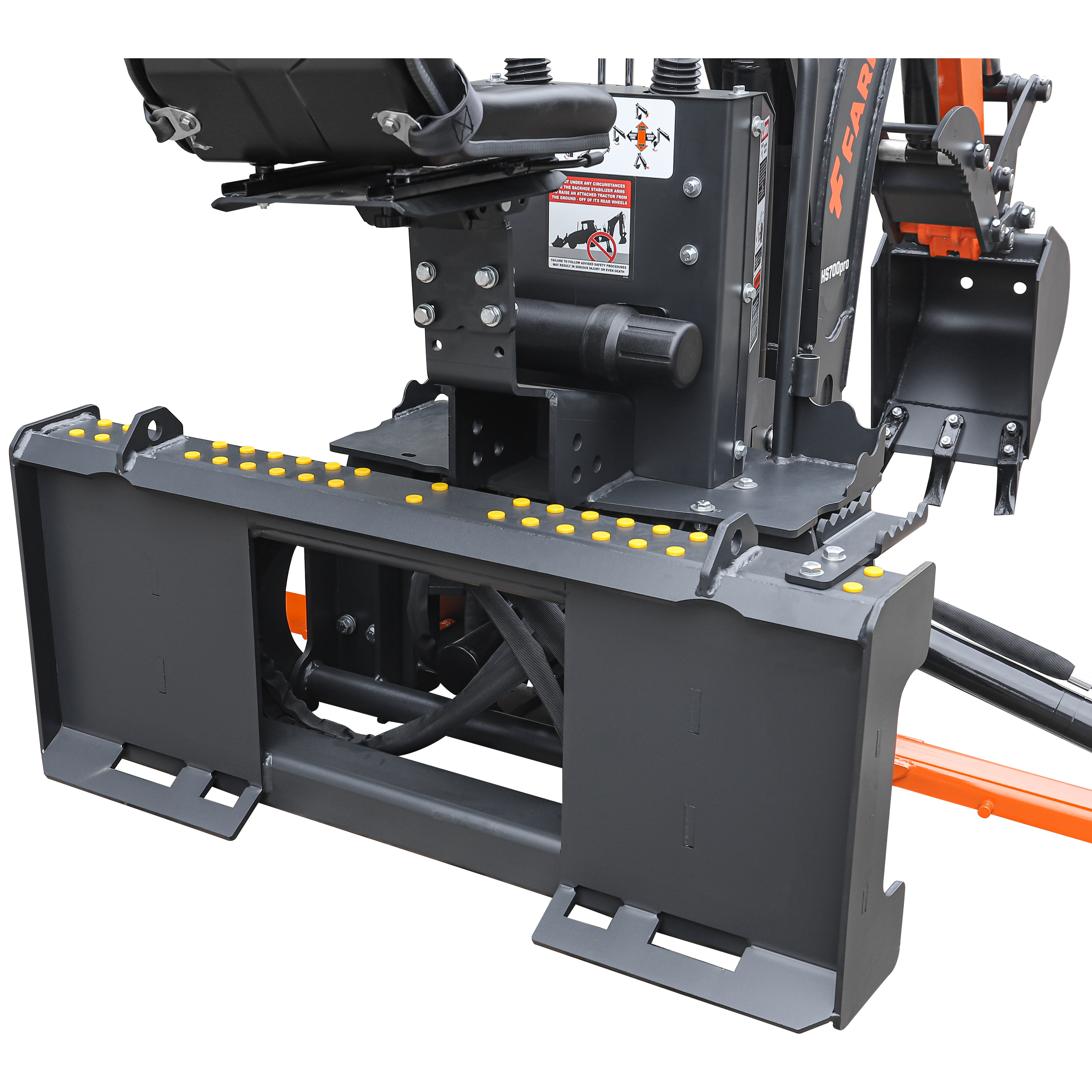

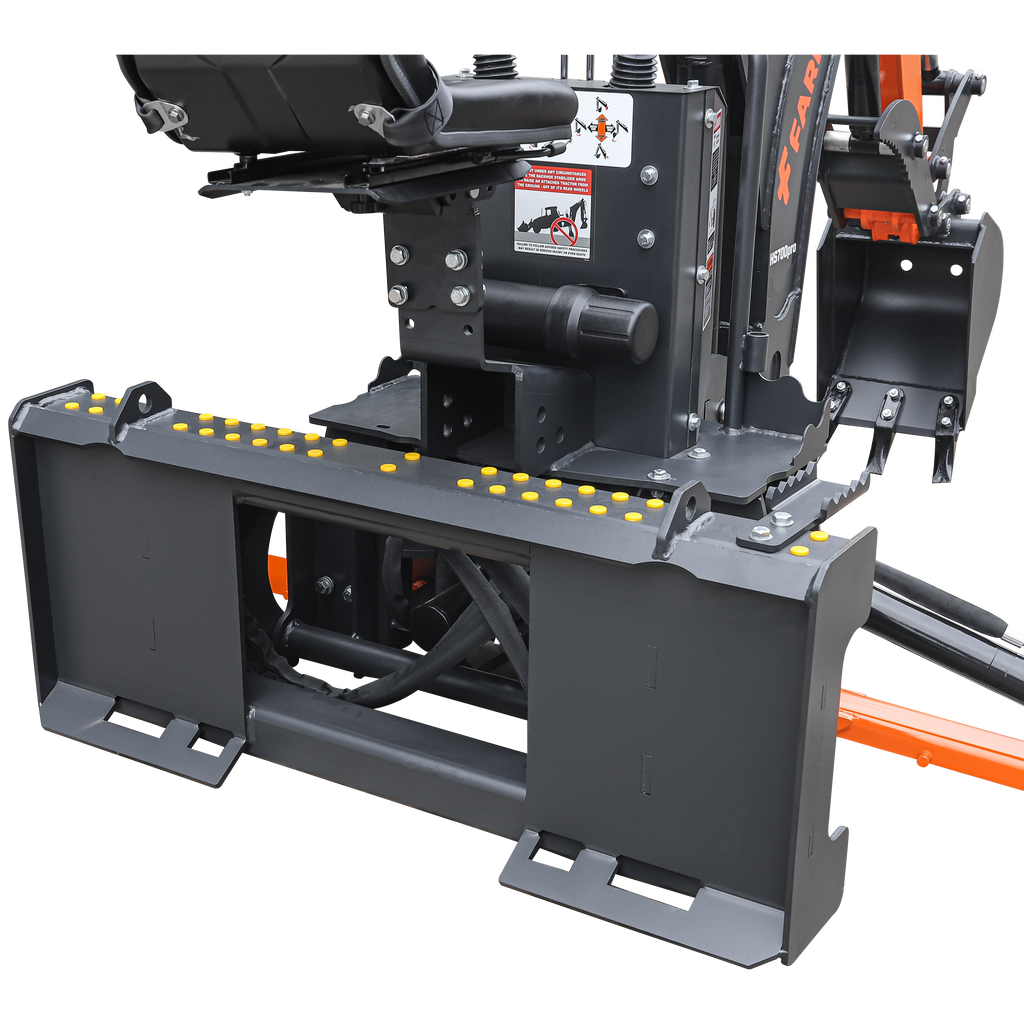

| Mounting System | Skidsteer Mount |
